K Swap K Series K20 K24 Dual Ball Bearing Turbo Sidewinder Manifold Intercooler
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***

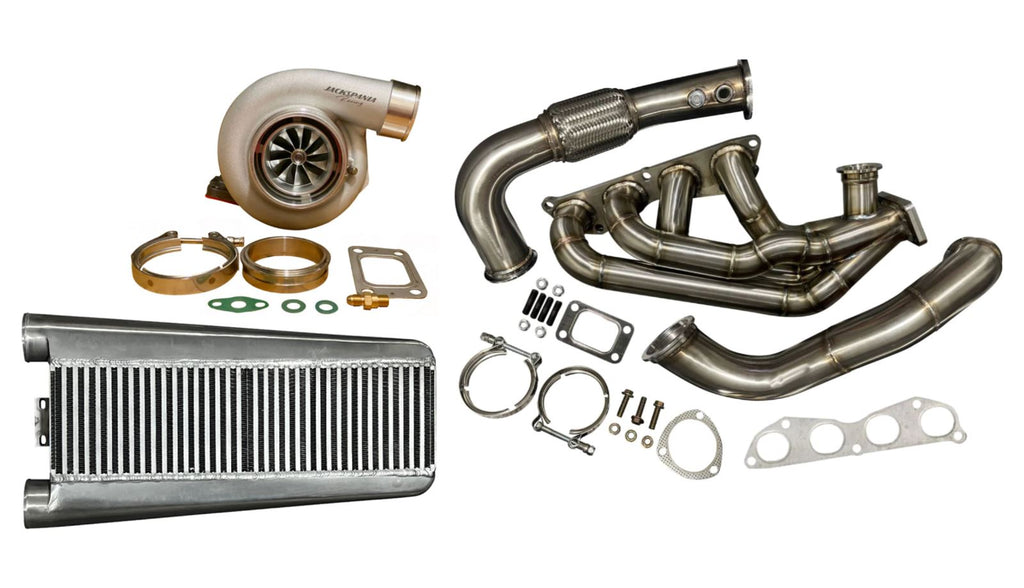

K SWAP K SERIES K20 K24 TURBO KIT SIDEWINDER MANIFOLD INTERCOOLER GT35 EG EK T4
Intercooler Info:
Key Features:
- Core Size: 24" x 7" x 3.5"
- Overall Size: 27" x 12.5" x 3.5"
- Air to air intercooler core
- High density, high quality core
- Bar and plate construction
- 3" inlet & 3" outlets
- Rated for 600HP
- This manifold design fits every Honda K-Series chassis from K-Swap's, CRX, Civic, Integra, EP3 Civics and RSX.
Key Features:
- Brand New In Box
- For K-Series K20 K24 Motor
- Made of 304 grade stainless steel
- One year limited warranty
- CNC machined manifold flange
- Flange is 1/2 inch thick
- Thick 8 gauge / Schedule 40 pipe
- One piece design 44mm wastegate flange
- Flanges surfaced for perfect seal
- Fully ported
- Low angle merge collector
- Professionally TIG welded and assembled
- Coolant lines may need to be modified or rerouted
- Comes Exactly As Pictured
Turbo Info:
- Compressor wheel: 65.7/82.6/85.3mm
- Compressor Housing: 0.72 A/R Anti-Surge, 4" Inlet, 2.5" Outlet
- Turbine wheel: 68mm/62.3mm
- Turbine housing: T3 Inlet, V-Band 3" Outlet, A/R 0.82
- Oil inlet:7/16-24UNF
