1999–2013 Chevy Silverado & GMC Sierra LS T4 Single Turbo Kit with Intercooler - Heavy Duty
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***
Fits 1999–2013 Chevrolet Silverado and GMC Sierra LS-powered trucks.

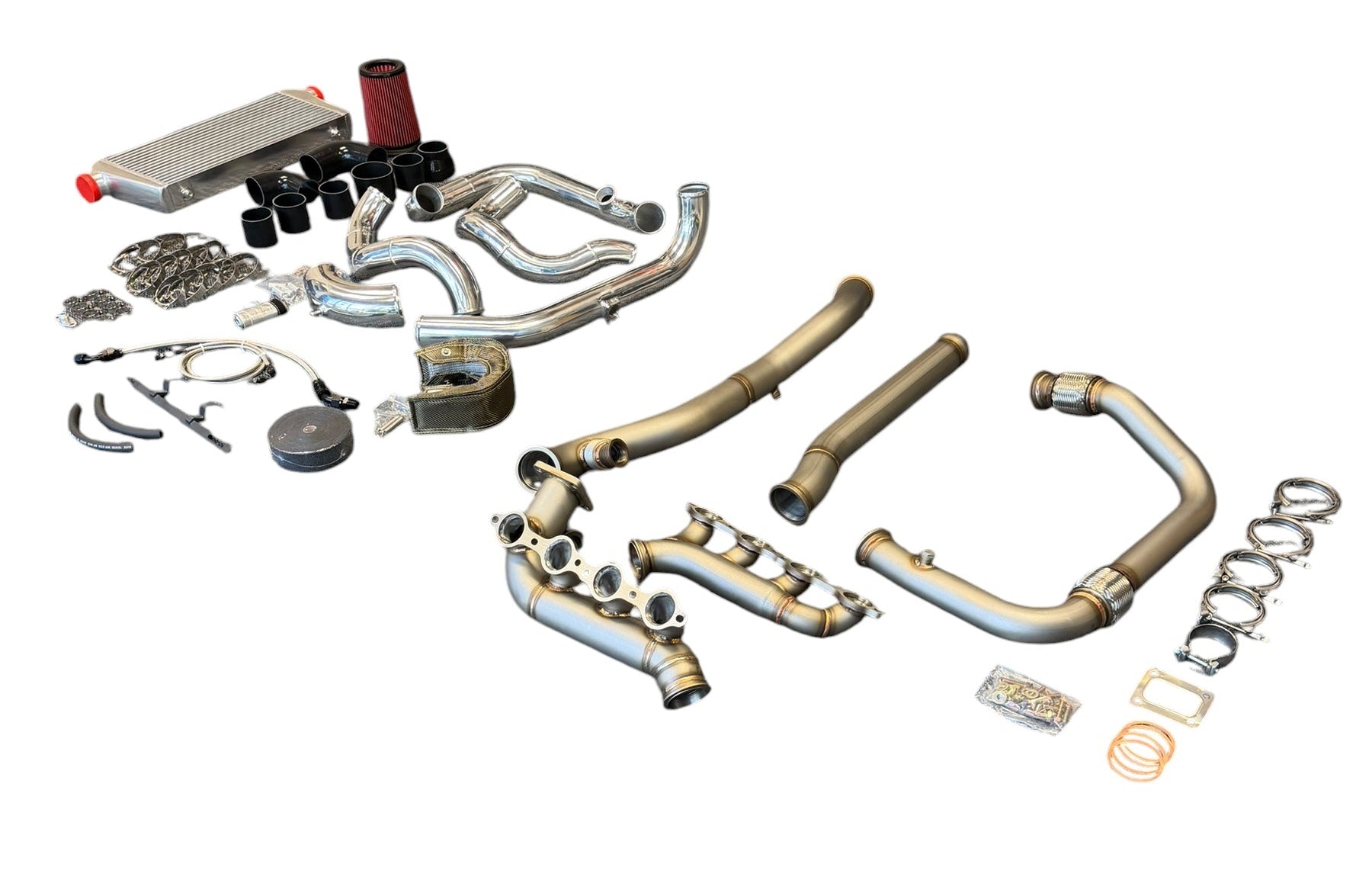

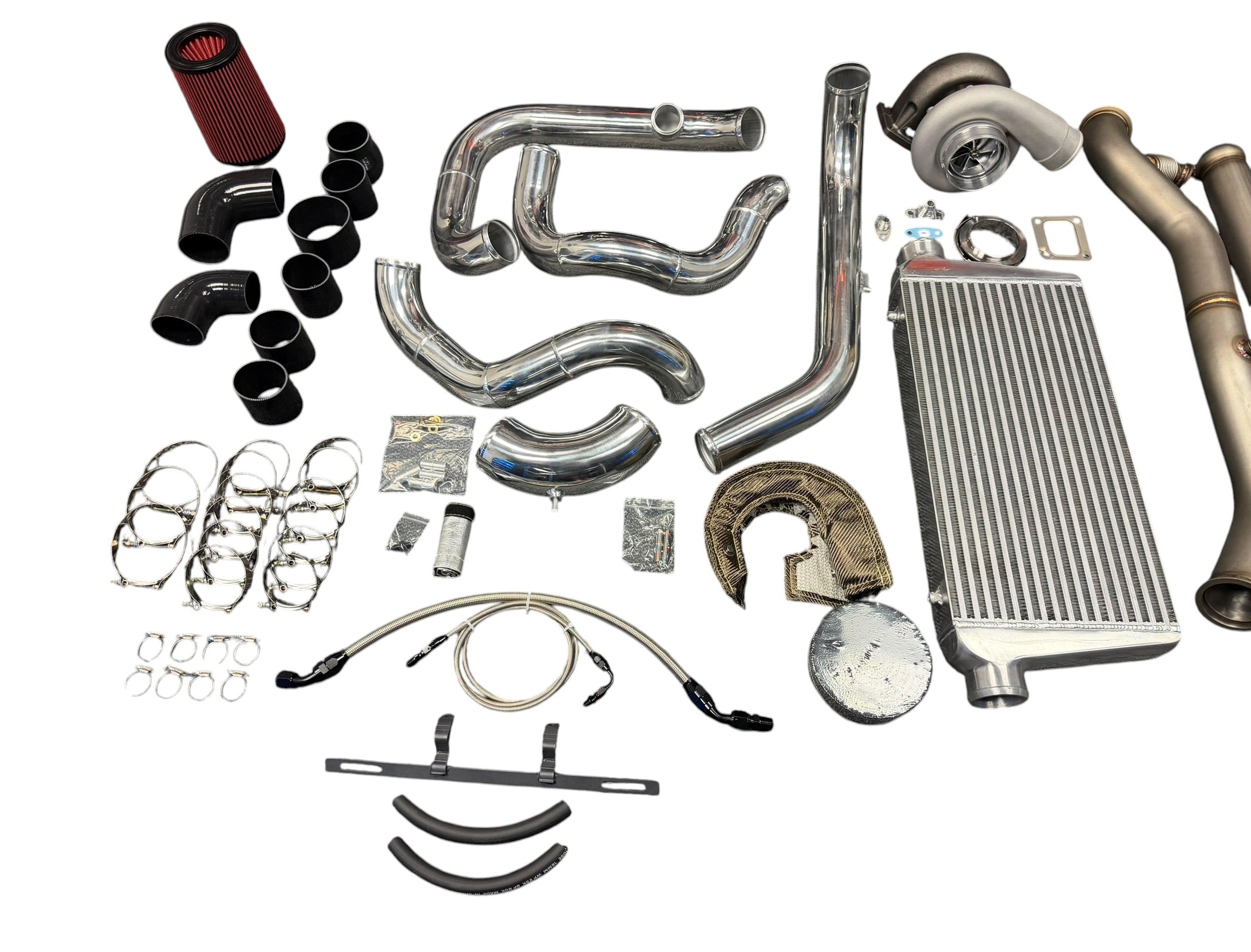

Our kit provides the major hot-side and cold-side components needed to install a single T4 turbocharger on your GM truck. Heavy-wall stainless-steel manifolds, V-band connections, aluminum charge piping and a front-mount intercooler create a strong foundation for a clean, high-performance turbo installation.

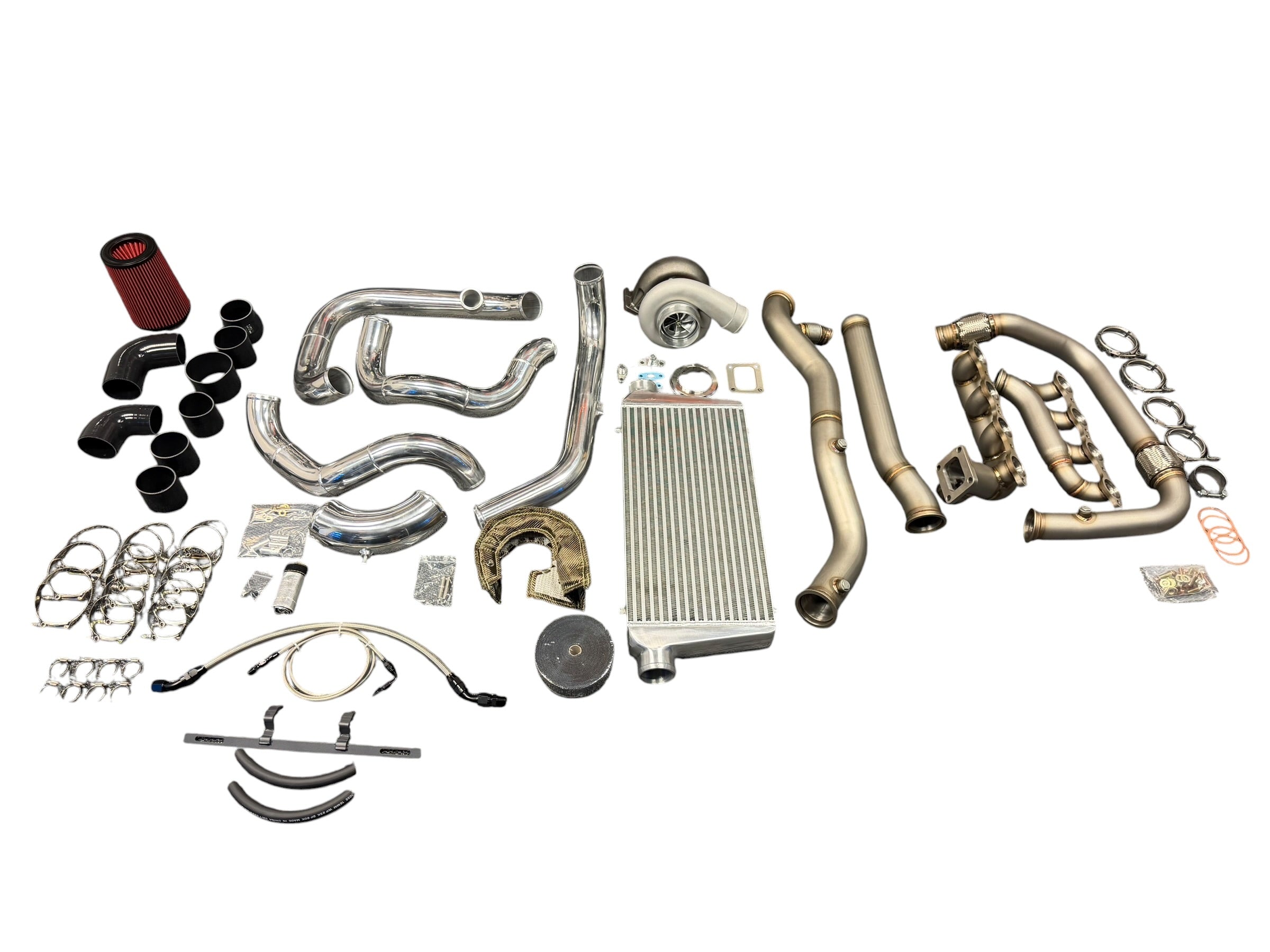

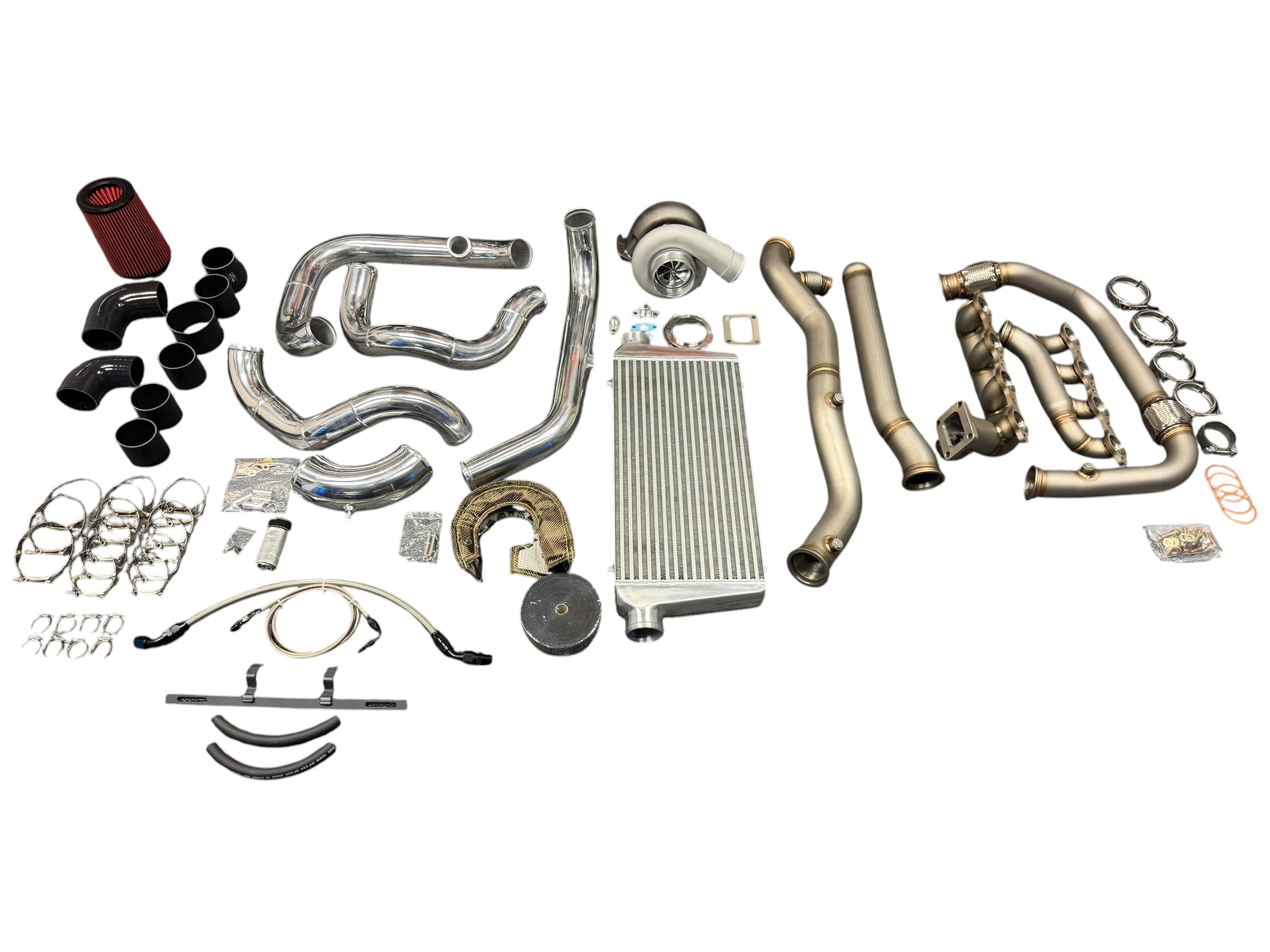

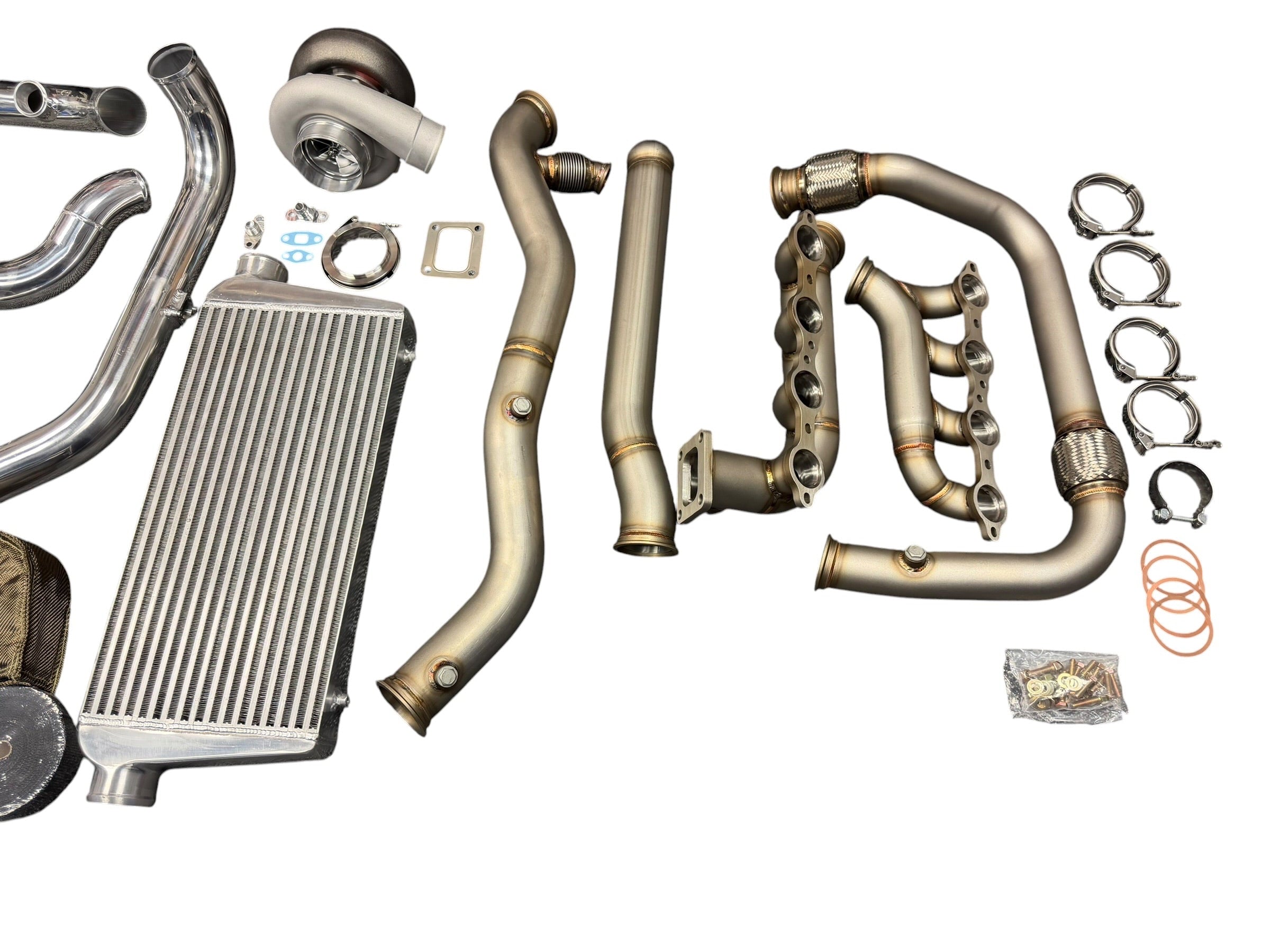

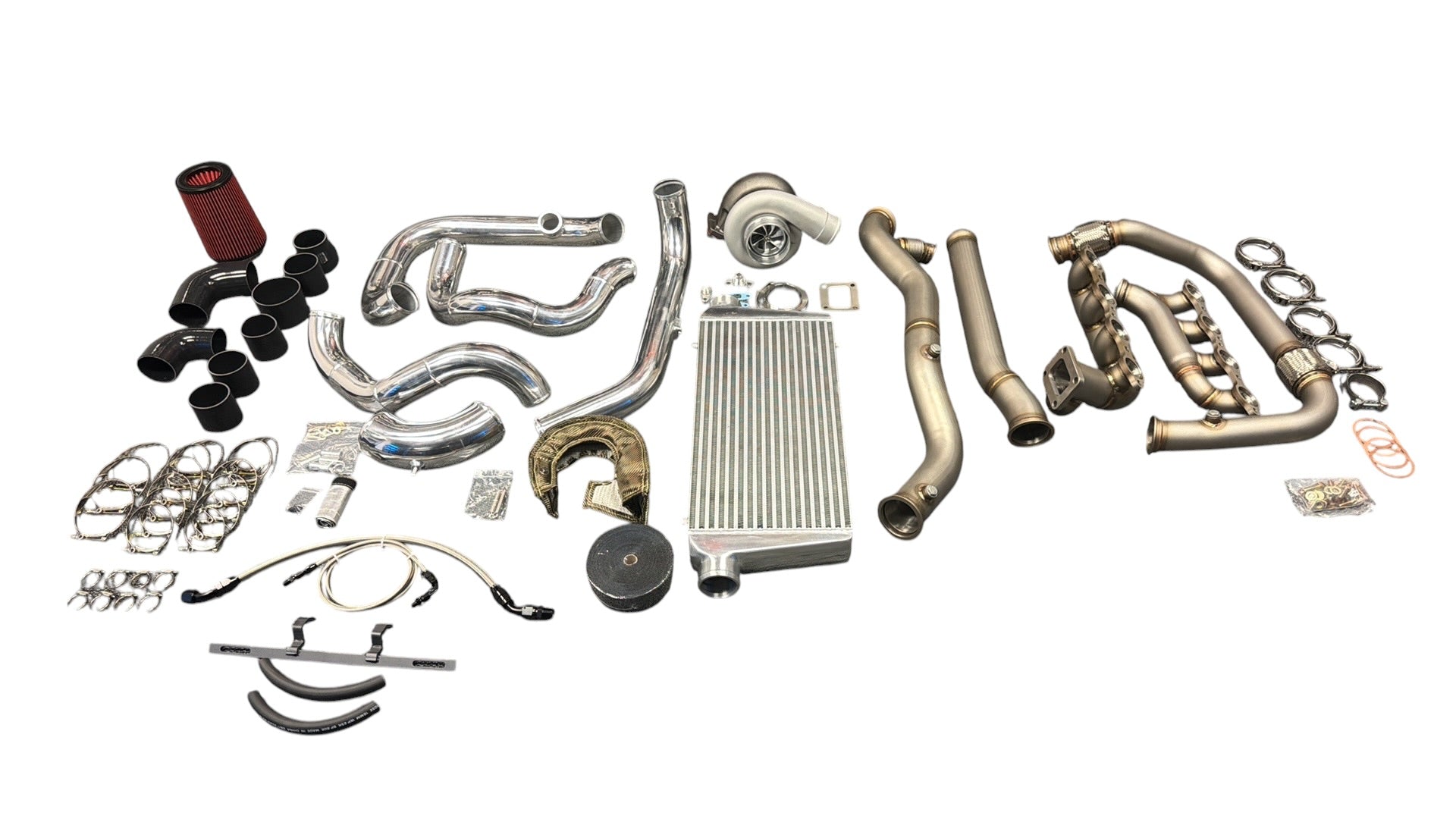

KIT INCLUDES

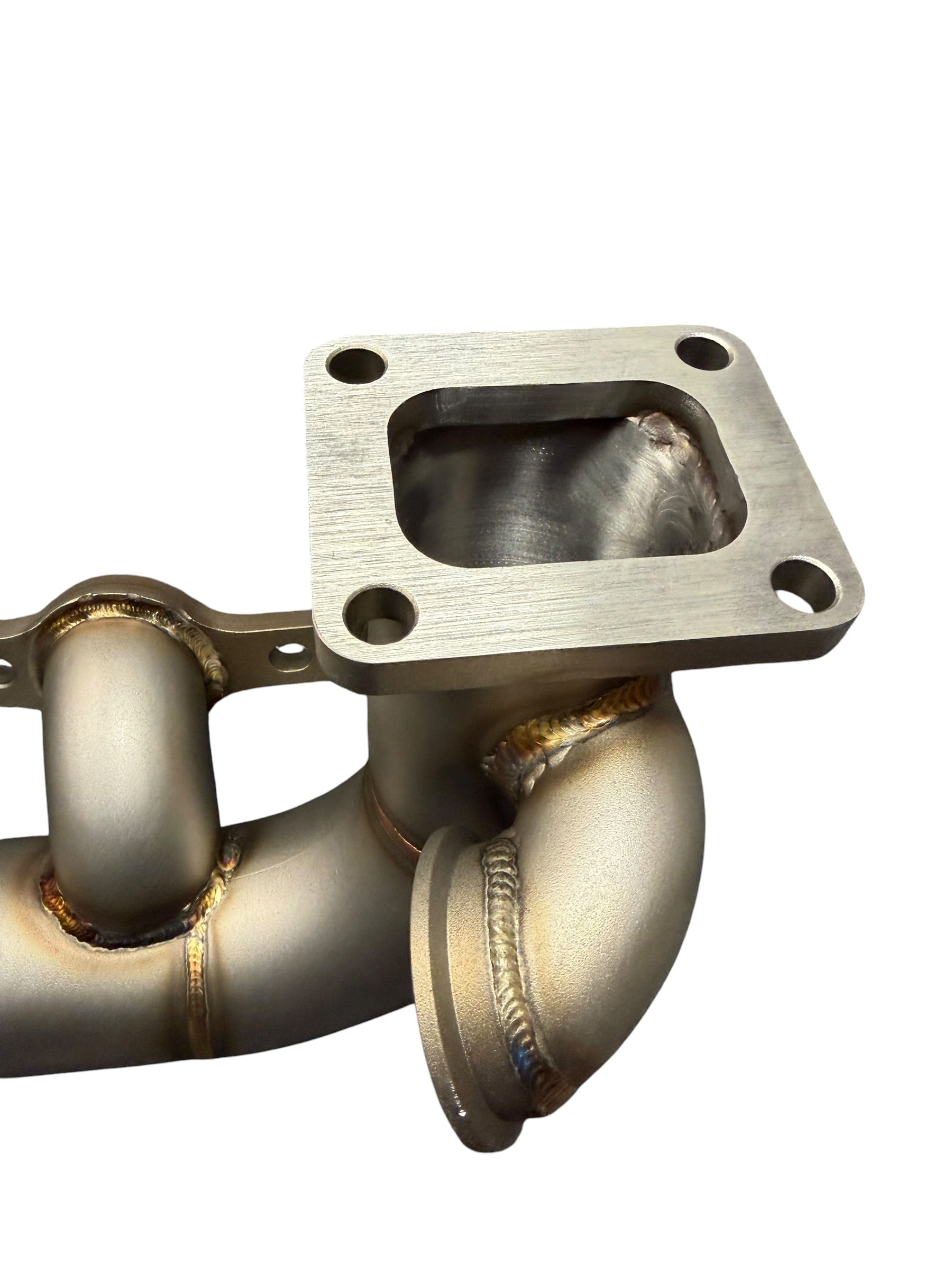

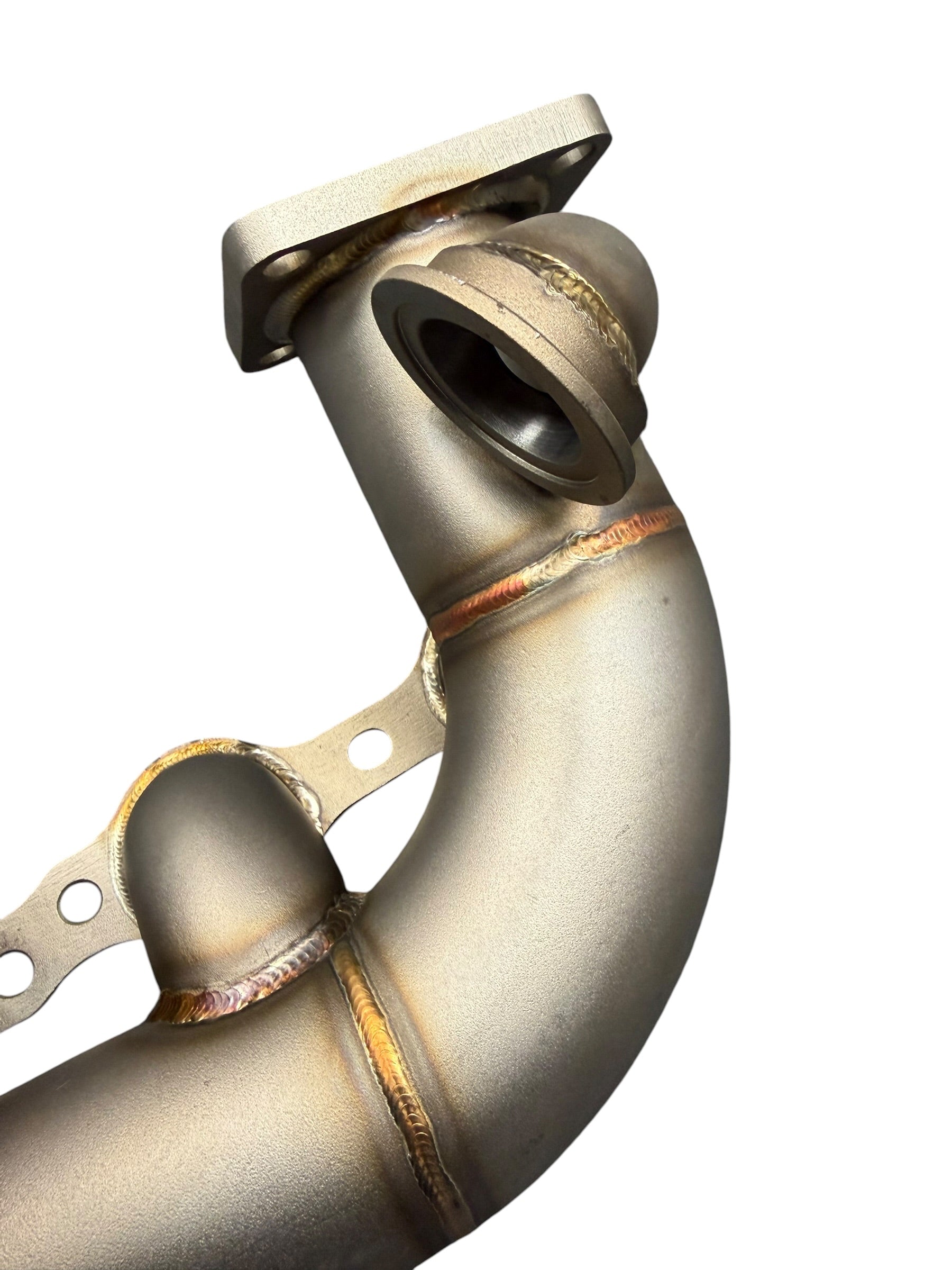

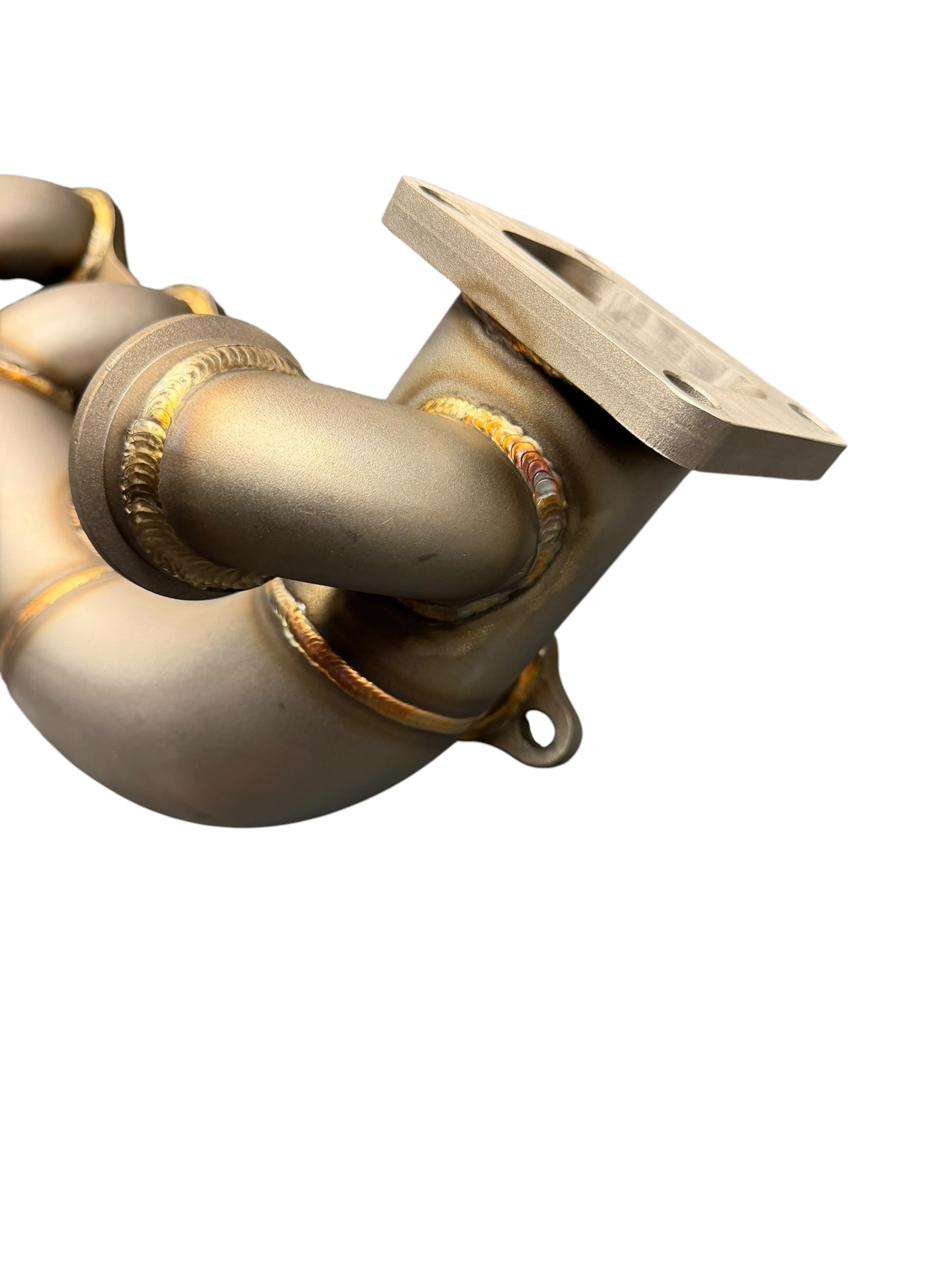

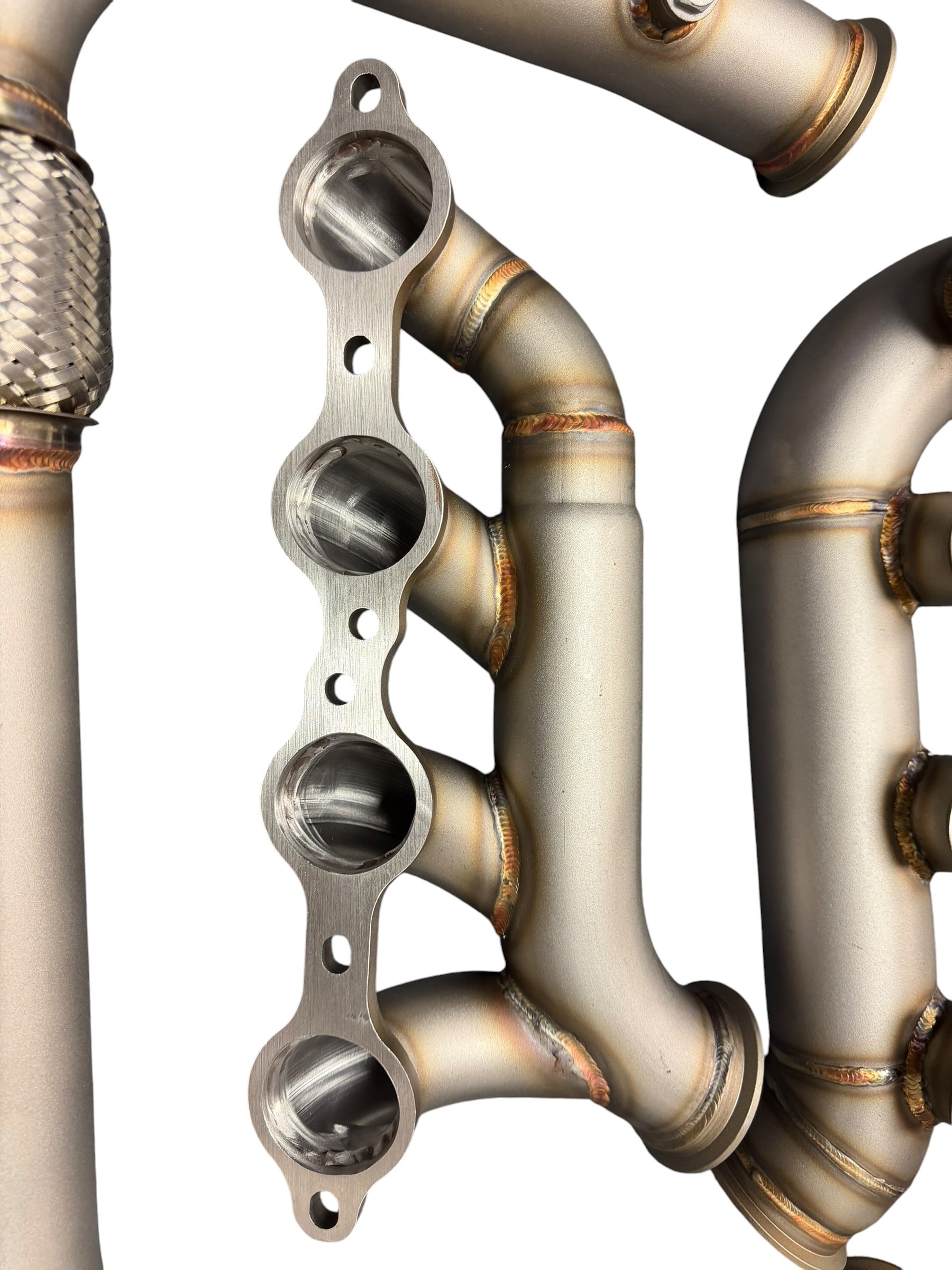

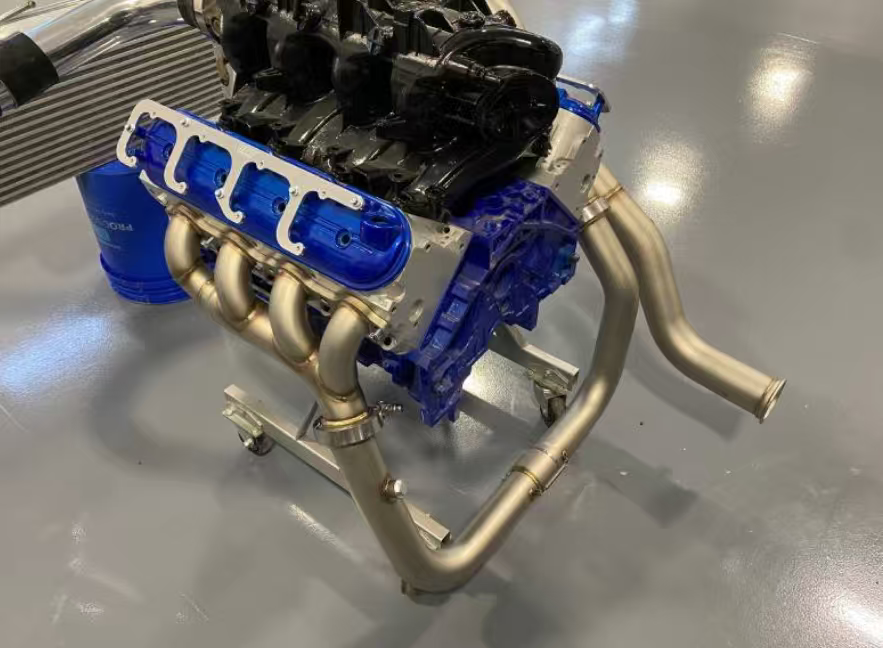

• Heavy-duty .120-wall stainless-steel passenger-side turbo manifold
• Stainless-steel driver-side manifold

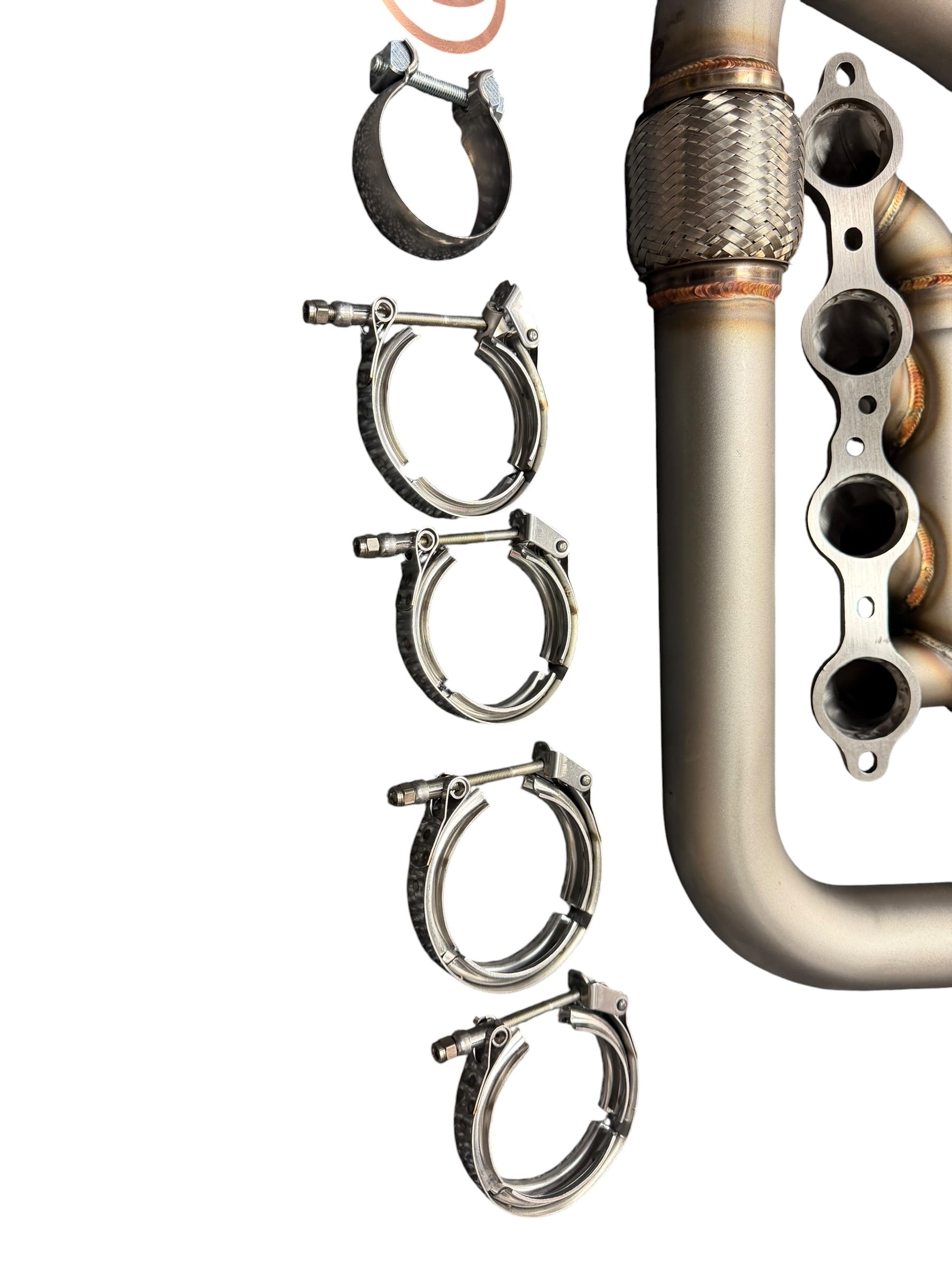

• Interlocking V-band manifold connections

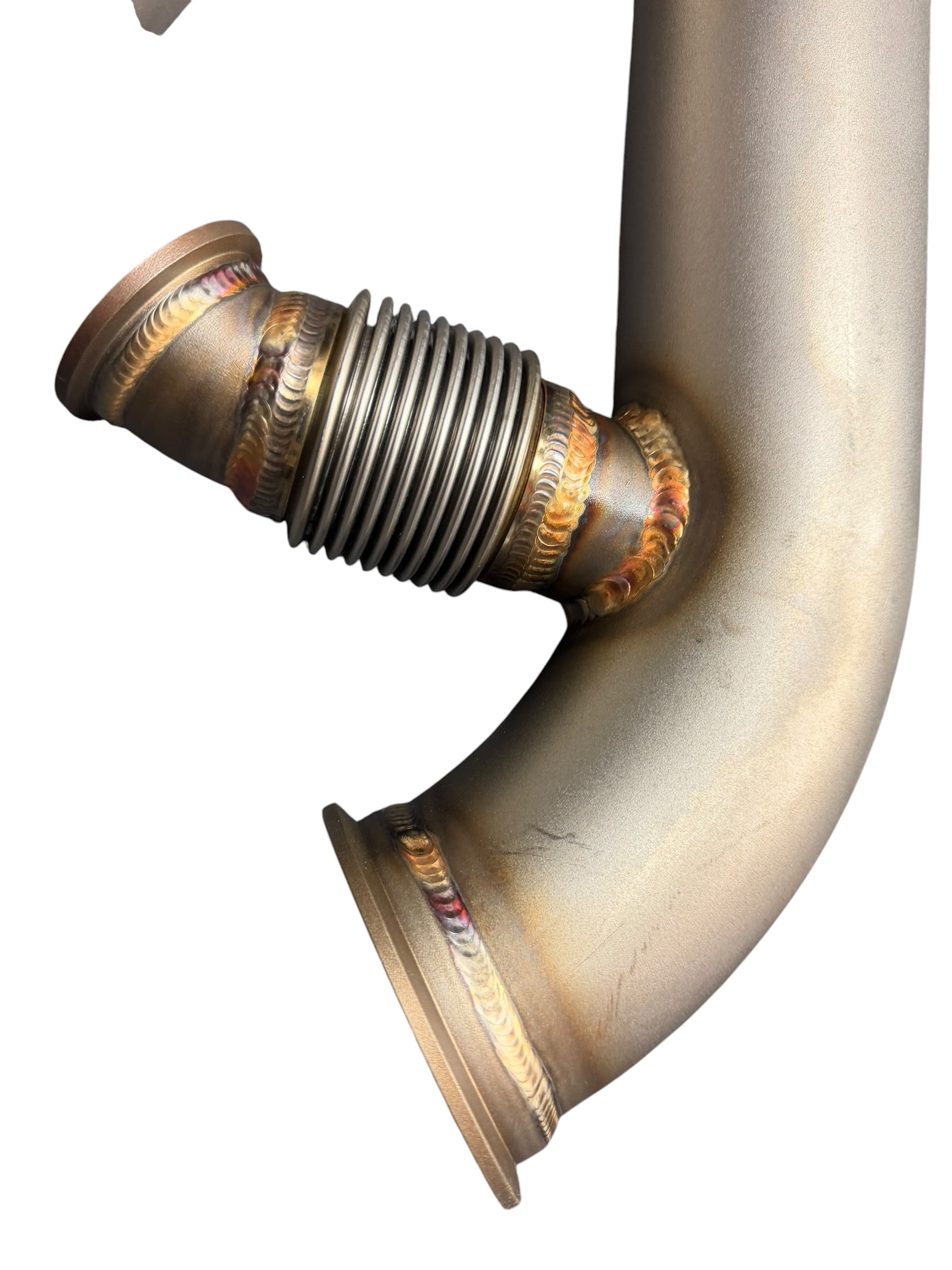

• Stainless-steel crossover with expansion bellows for easier alignment
• Standard T4 turbo mounting flange
• Wastegate provision positioned in the exhaust flow from both banks
• 3-inch stainless-steel downpipe
• Recirculated wastegate discharge
• Primary oxygen-sensor provisions
• Wideband oxygen-sensor bung with plug

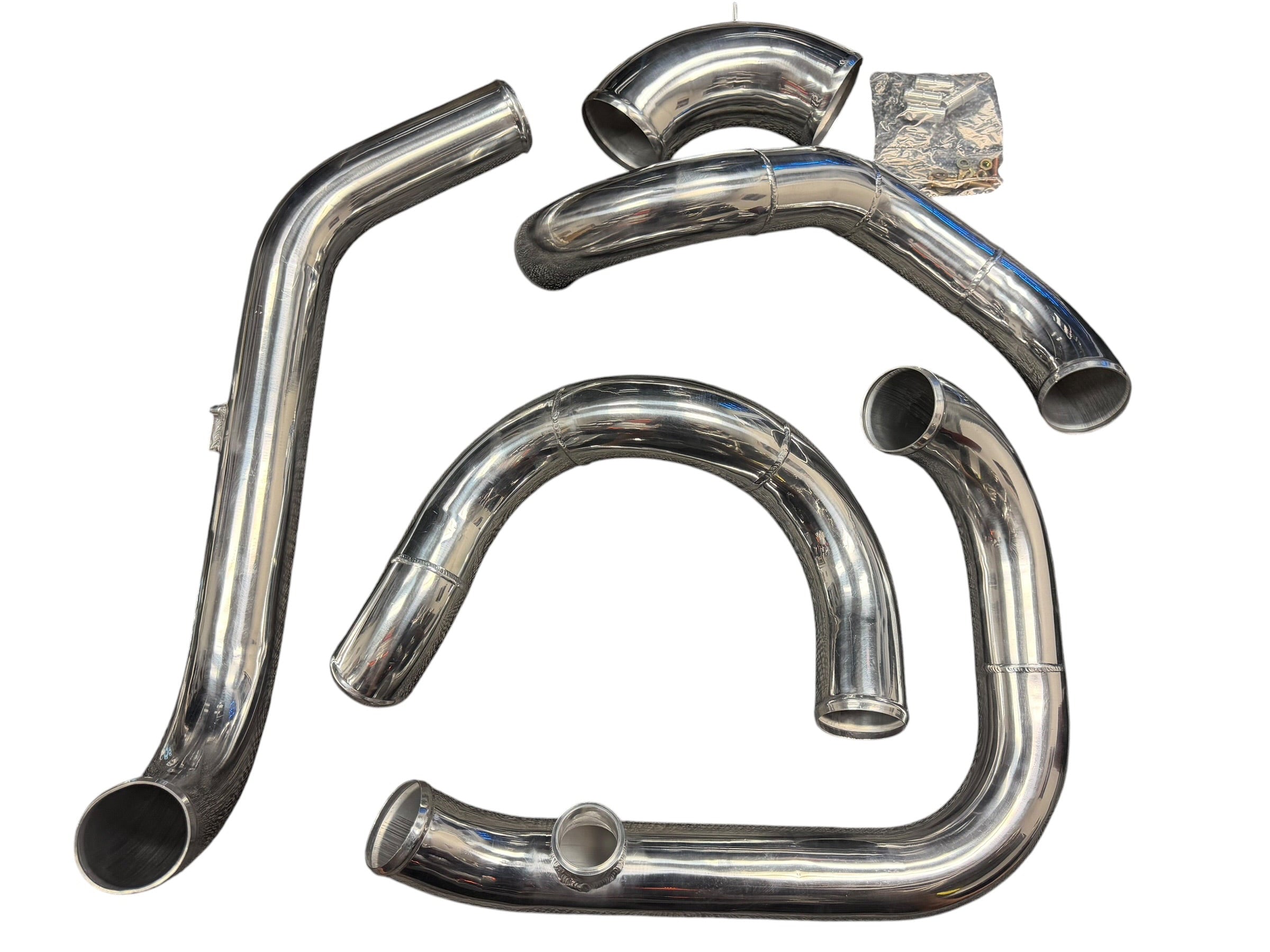

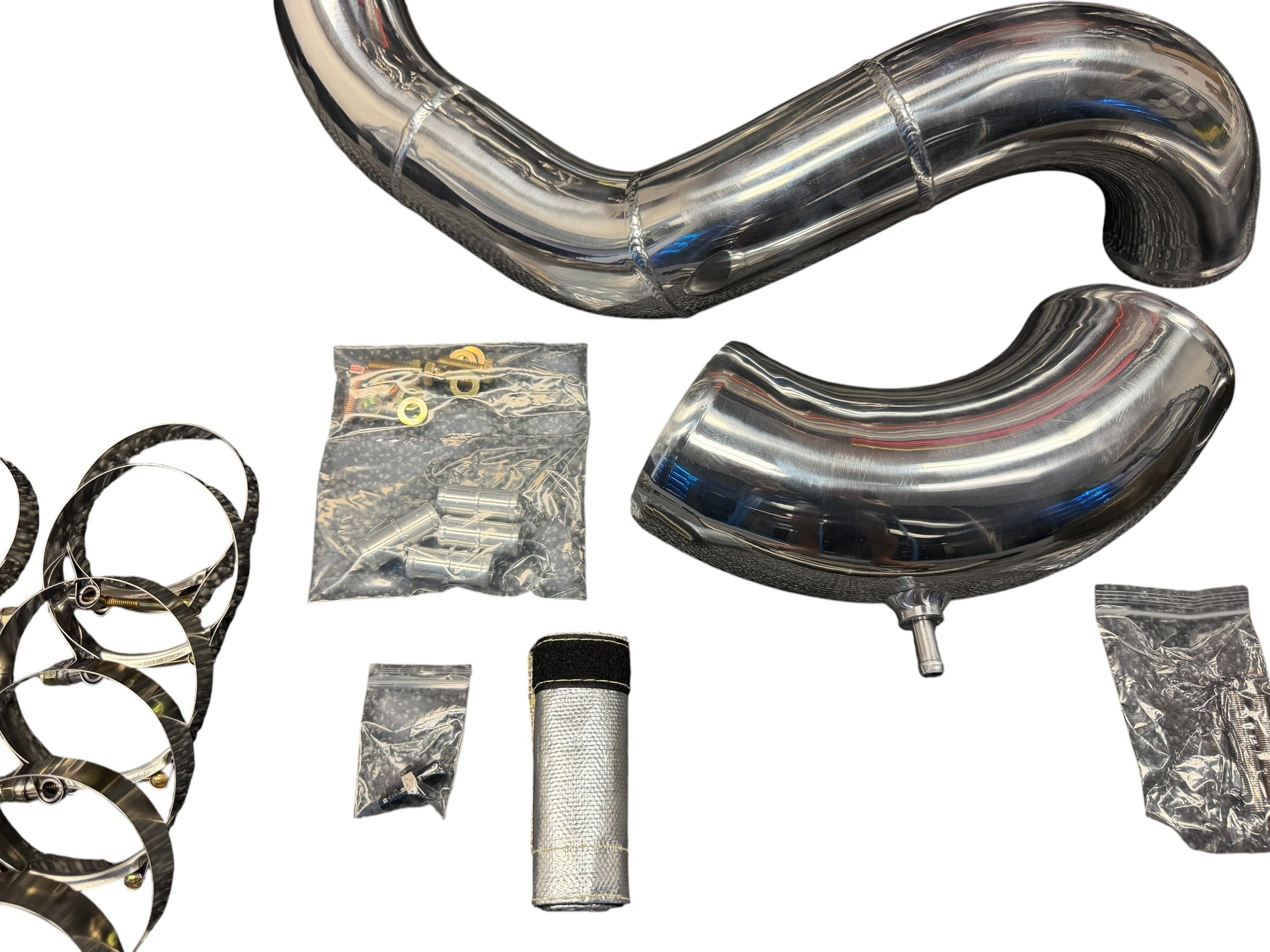

• Aluminum intercooler and charge piping
• 50mm blow-off-valve flange
• Front-mount intercooler

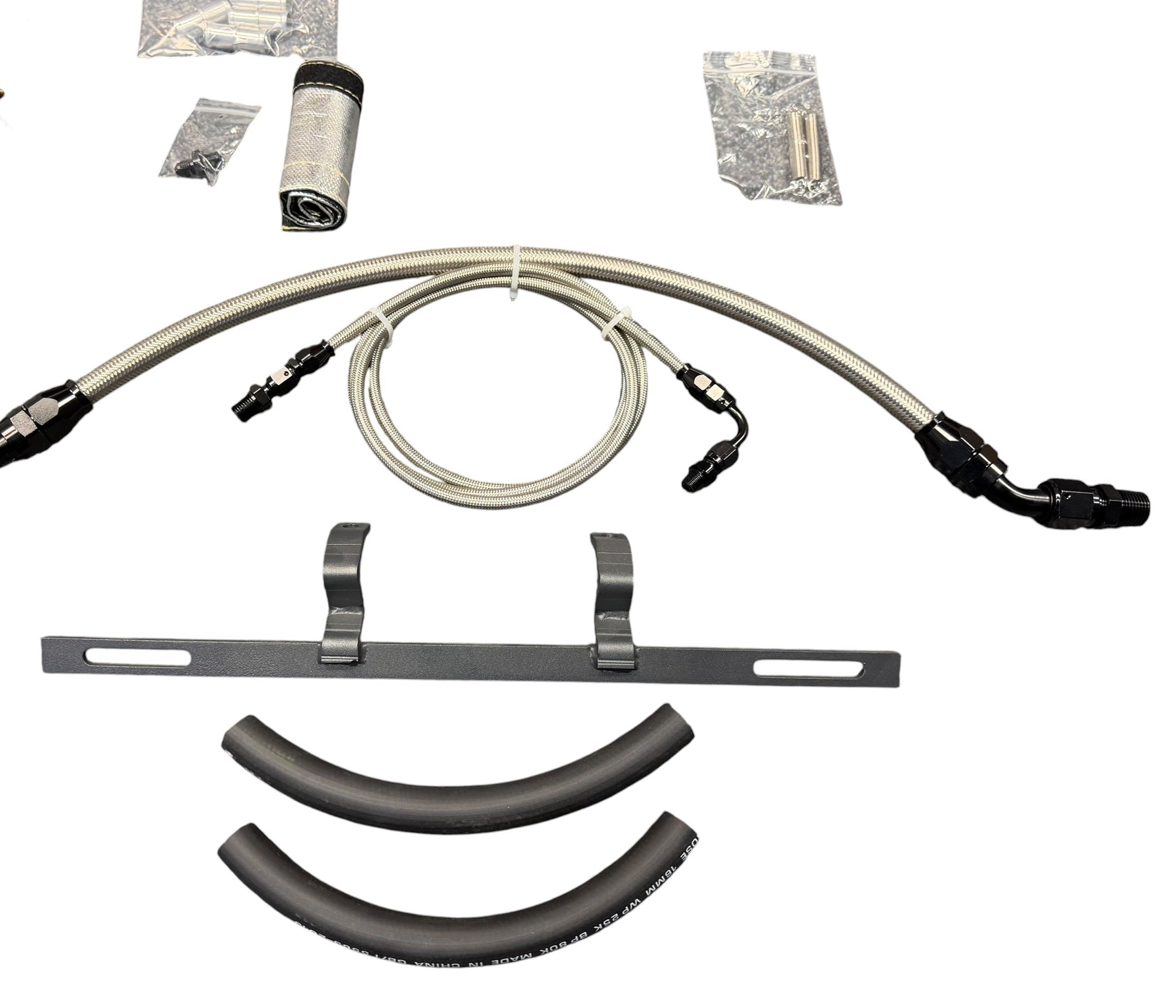

• Turbo oil-feed and oil-drain kit with required fittings

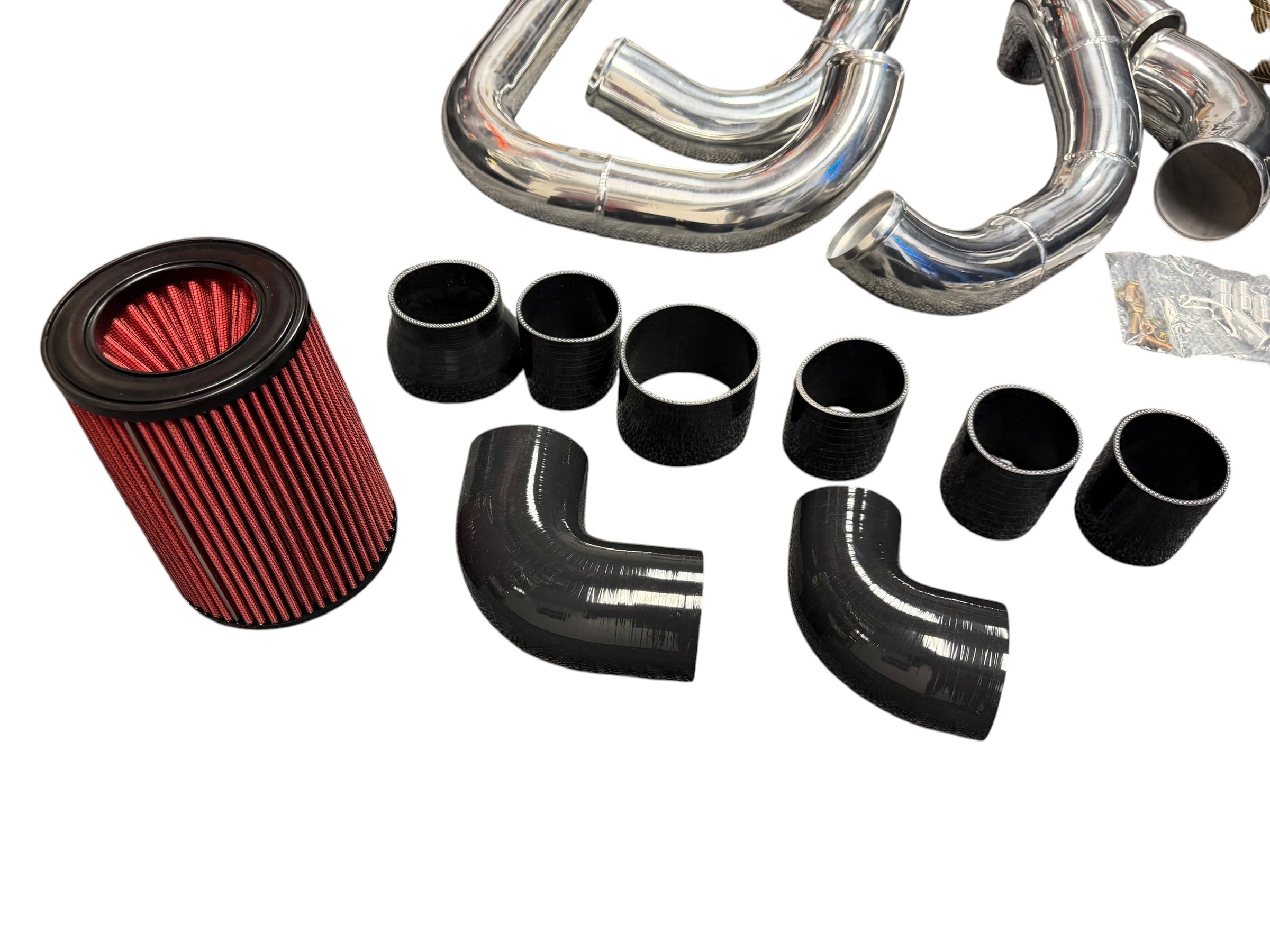

• 4-inch turbo intake and air filter
• Coolant-line extension fittings

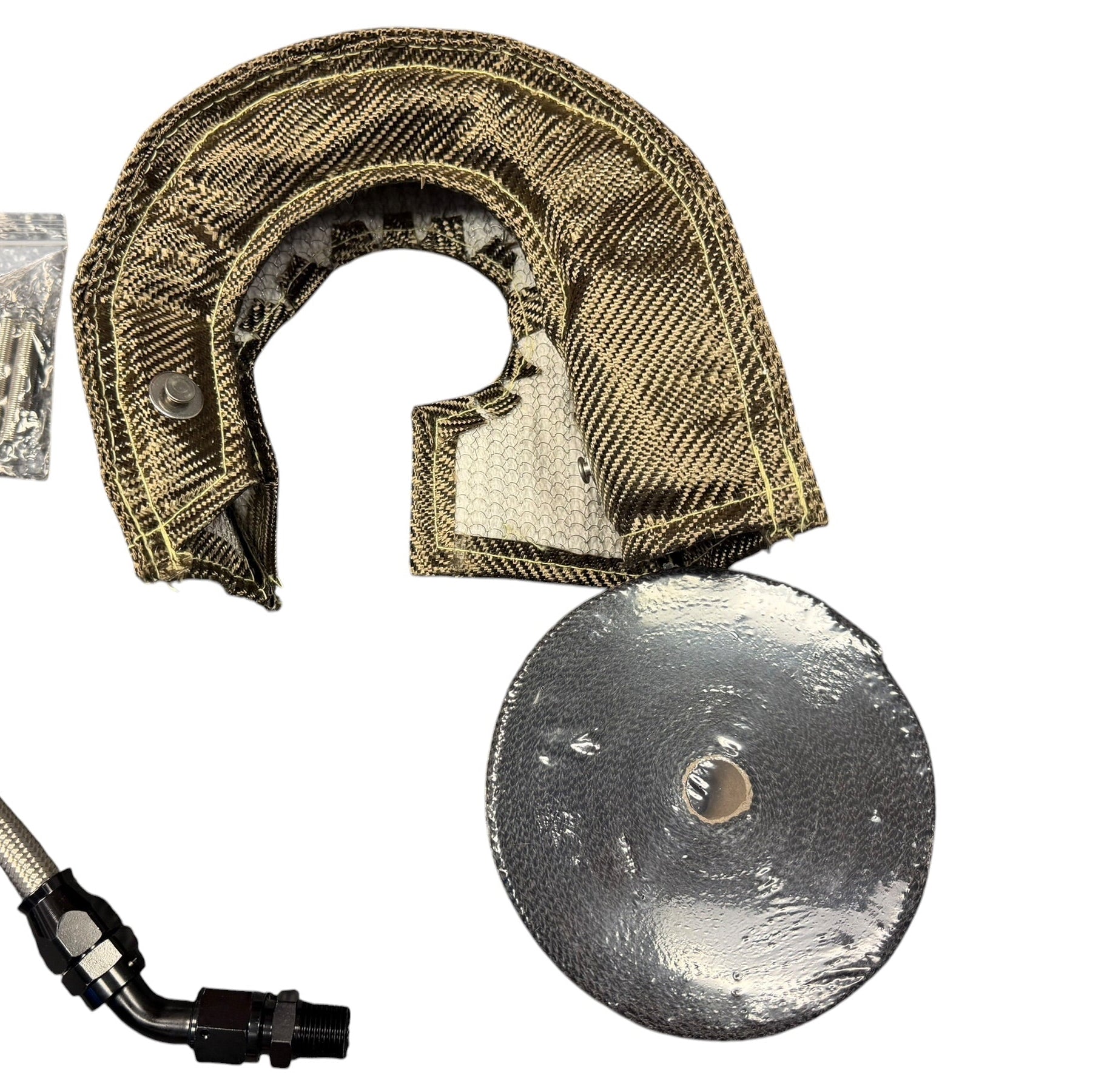

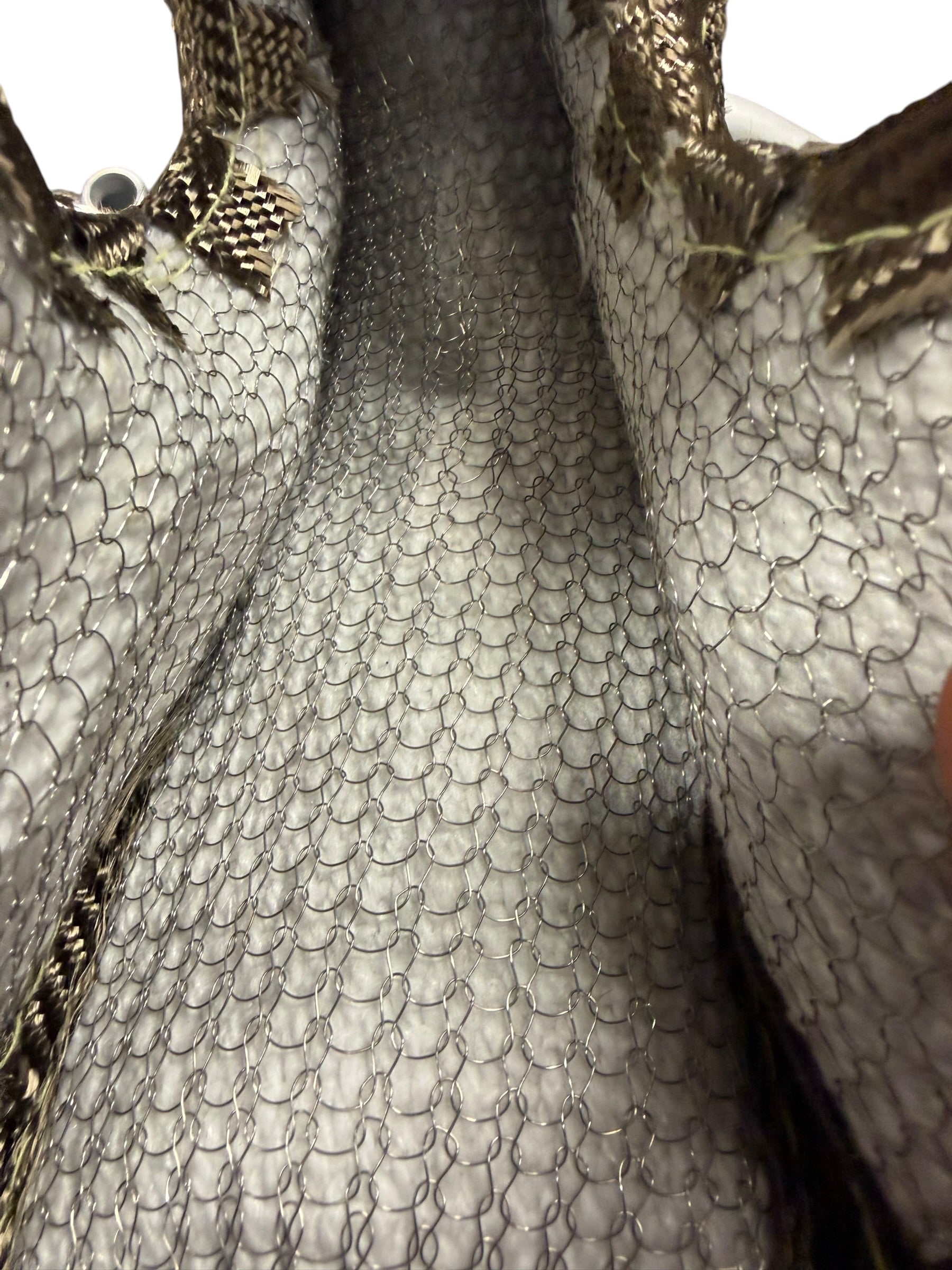

• T4 turbo blanket
• Heat-wrap roll

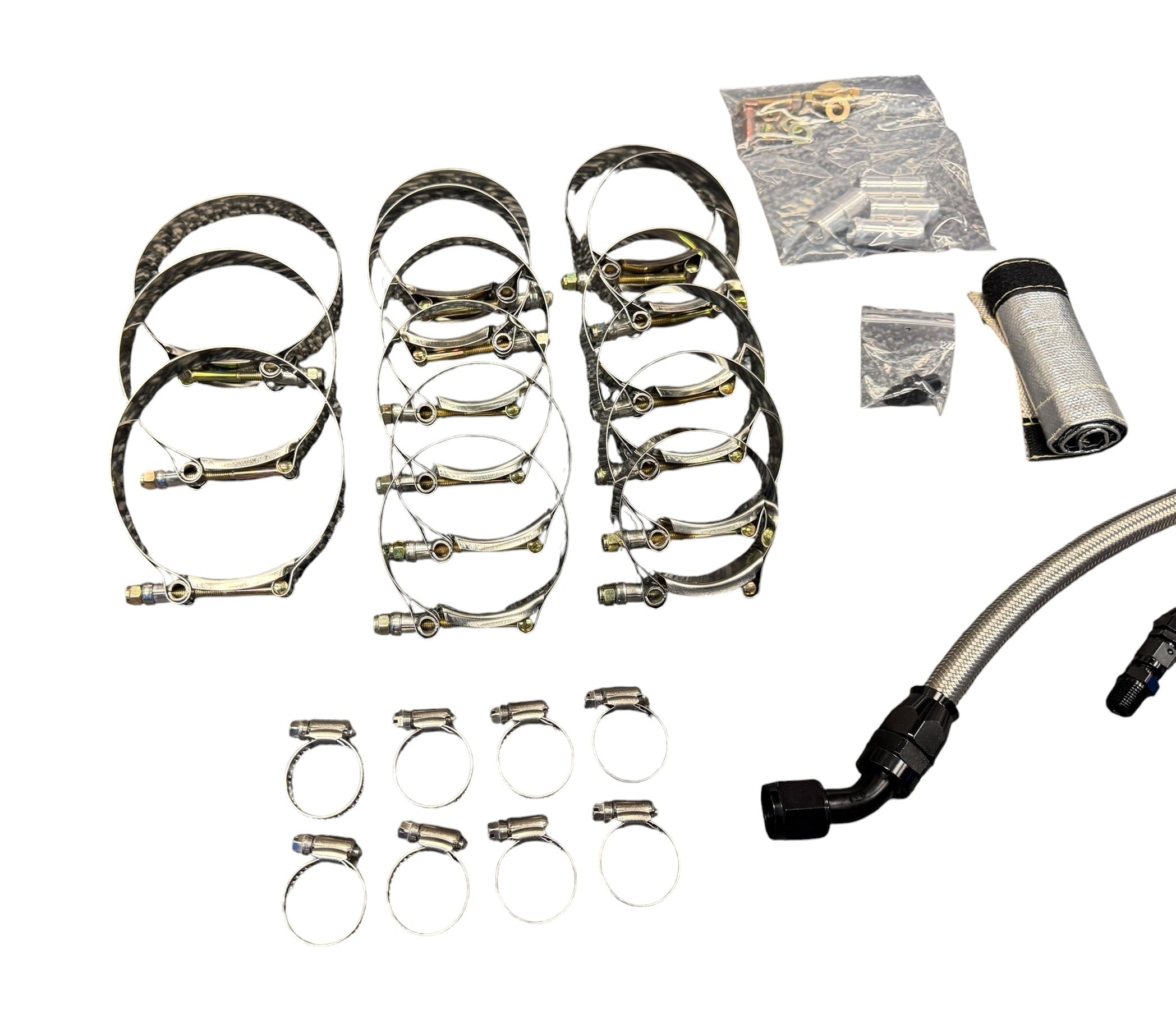

• Required silicone couplers and T-bolt clamps

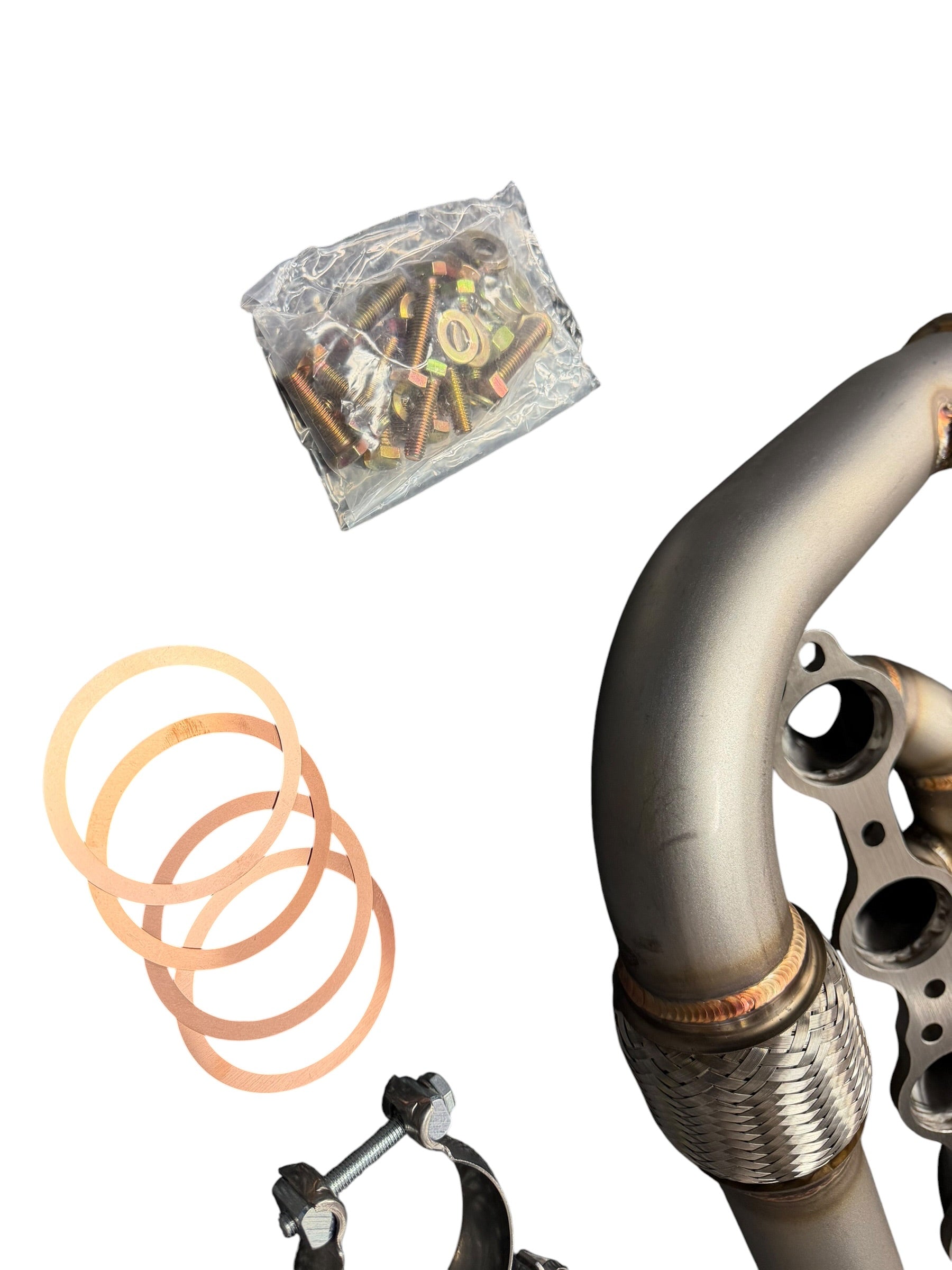

• Installation hardware
FEATURES
• Designed for LS-powered Chevrolet Silverado and GMC Sierra trucks
• Fits 2WD, 4WD and AWD applications
• Compatible with 1500 and 2500-series trucks
• Thick stainless-steel manifolds support the heat and weight of a turbocharger
• V-band construction simplifies assembly and alignment
• Dual crossover bellows help reduce stress caused by heat expansion
• Wastegate placement helps provide consistent boost control
• Recirculated wastegate discharge offers a cleaner, quieter installation
• Aluminum cold-side piping supplies cooled, filtered air to the throttle body
• Factory radiator remains in its original position
• Factory air conditioning can be retained, although adjustment of the original A/C hard line may be required
IMPORTANT FITMENT INFORMATION
This kit covers multiple truck generations. Minor differences in intercooler placement, charge-pipe routing, MAF configuration and exhaust connection may exist depending on the exact year, body style, engine, transmission and existing exhaust system.
Installation may require relocation of the factory transmission cooler, minor trimming behind the grille or bumper, adjustment of the A/C hard line and modification of the exhaust connection. Trucks equipped with a 4L80 transmission may require minor transmission-case ear clearance near the crossover.
Professional installation and custom tuning are strongly recommended.
WHAT IS NOT INCLUDED:
• Wastegate
• Blow-off valve
• Fuel-system upgrades
• Engine-management components
• Tuning
• Exhaust system after the supplied downpipe
• Any components not specifically listed above
This is a turbo piping and intercooler kit. The vehicle cannot be operated with this kit alone. A compatible T4 turbocharger, wastegate, blow-off valve, properly sized fuel system, engine management and professional calibration are required.
Please verify vehicle year, engine, transmission, drivetrain and turbo specifications before ordering.
