B D H F Series Tucked Engine Sub Chassis Harness OBD1
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***

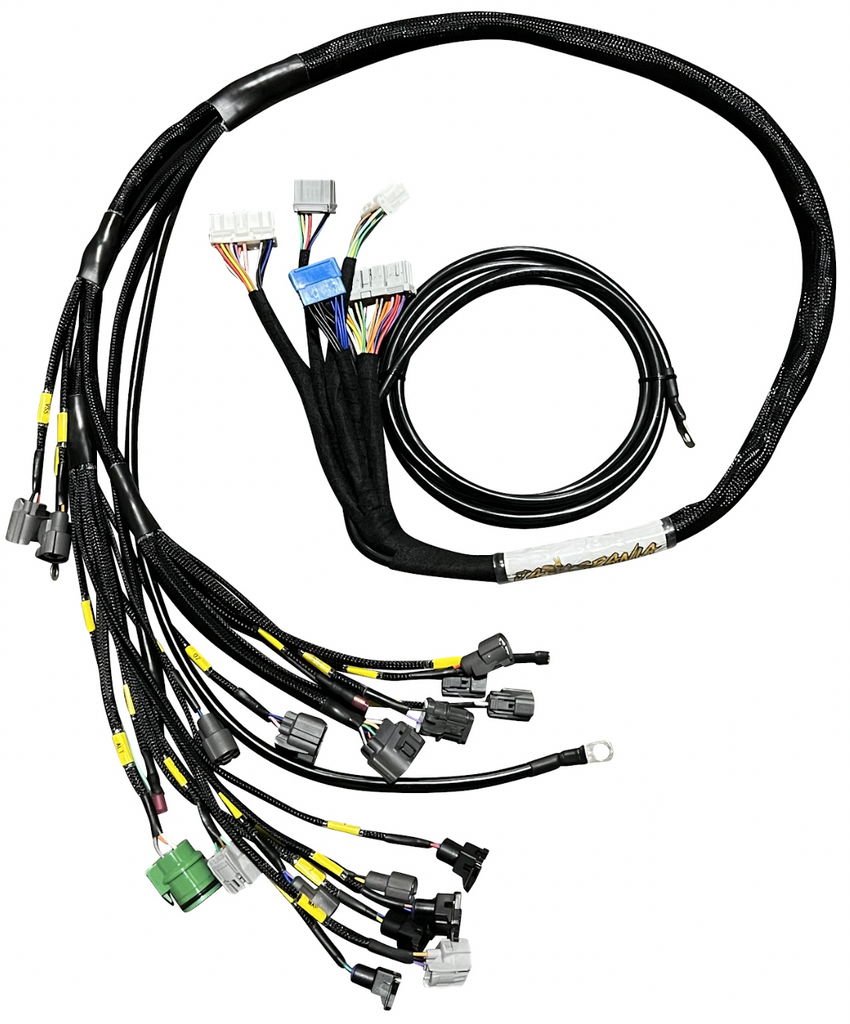

B D H F Series Tucked Engine Sub Chassis Harness OBD1 With Power Wire
Our engine harness is made with new high quality connectors, and automotive grade wiring. Carefully designed to run hidden in the engine bay to reduce clutter and attain an overall cleaner look. Installation is less complex than our competitors, 95% of the installation is plug n play.
***Note: Must run High Impedance injectors, is not compatible with a resistor box.
Please note H Series engines will require an extension harness to be ran for successful operation.
This kit includes:
1x Wire Tuck Engine Harness
Injector Connector: Bosch EV1 Style
Alternator Connector: OBD1 Style
Distributor plug: OBD1
Connectors:
Oil Pressure Sending Unit
Knock Sensor
Intake Air Temperature
Oxygen Sensor (Primary 4 Wire)
Alternator
2 Extra Wires
Injector 1-4
MAP Sensor
TPS Sensor
Idle Control Motor
Electronic Speed Sensor
Ground
Fan Switch
h20 Sending Unit (for Gauge Cluster)
Reverse Lights
Engine Coolant Temp
Starter Signal
VTEC Solenoid
Power Distribution Cap
