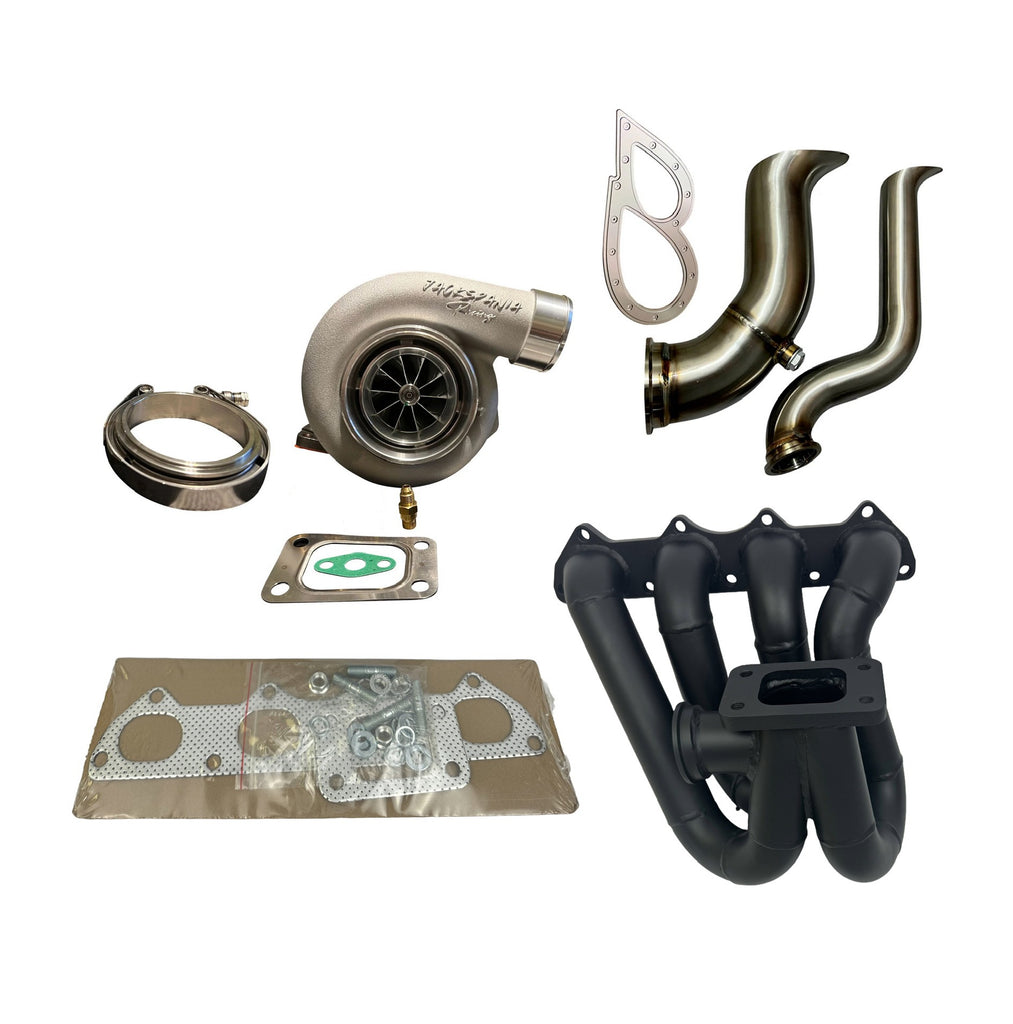

B Series Turbo Kit Ceramic Coated Top Mount Manifold Up Pipe 6262 3582 T3 44mm
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***
Ceramic Turbo Manifold Specs:
Ceramic Coated Top Mount made Of Extra Thick Seamless 3mm Stainless Steel for Longevity and Performance
- Extra Thick flange to prevent warping.
- Heat Resistant Ceramic Coated
- 4-1 merge collector provides smooth exhaust flow and higher HP gain due to tig welding. We Ported it for better flow.
- 44mm Tial V band wastegate flange
- Hardware included
- For use with T3 turbos
- Not AC or PS compatible
3582R Turbo Specs:
Flank Billet Compressor Wheel
Compressor wheel: 65.7/82.6/85.3mm
Compressor Housing: 0.72 A/R Anti-Surge, 4" Inlet, 2.5" Outlet
Turbine wheel: 68mm/62.3mm
Turbine housing: T4 Inlet, V-Band 3" Outlet, A/R 0
Compressor wheel: 65.7/82.6/85.3mm
Compressor Housing: 0.72 A/R Anti-Surge, 4" Inlet, 2.5" Outlet
Turbine wheel: 68mm/62.3mm
Turbine housing: T4 Inlet, V-Band 3" Outlet, A/R 0
Capable of 600-700HP
Up Pipe Specs:
EF and DA May need crossmember modification and radiator support modification.
3-inch Up-pipe that comes hood exit dump tube. The Up-pipe is designed with a hood exit teardrop opening and comes with a V-band flange for the Turbo Outlet.
3" v-band Up Pipe (Hood Exit Downpipe) - Tear Drop Cut
44mm wastegate Dump Tube (Hood Exit) - Tear Drop Cut
This Up-Pipe only fits B-Series & H-Series Top Mount Turbo Manifold
Note: Due to different turbo and wastegate setup, the tear drop cut end may not sit flush with your hood, or slight angle adjustment is needed
