Deutsch DT Male Female Mating Connector Kit With Pins and Sockets – 2, 3, 4, 6, 8 or 12 Pin
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***
Build clean, dependable and weather-resistant electrical connections with our Deutsch DT-style connector kits. These rugged connectors are ideal for automotive, racing, marine, off-road and industrial wiring applications.
DT connectors use size 16 contacts and accommodate approximately 14–20 AWG wire. They are a great choice for higher-current circuits, supporting up to 13 amps per contact when properly assembled with compatible wire and terminals.
Available Configurations:
2 Pin
3 Pin
4 Pin
6 Pin
8 Pin
12 Pin

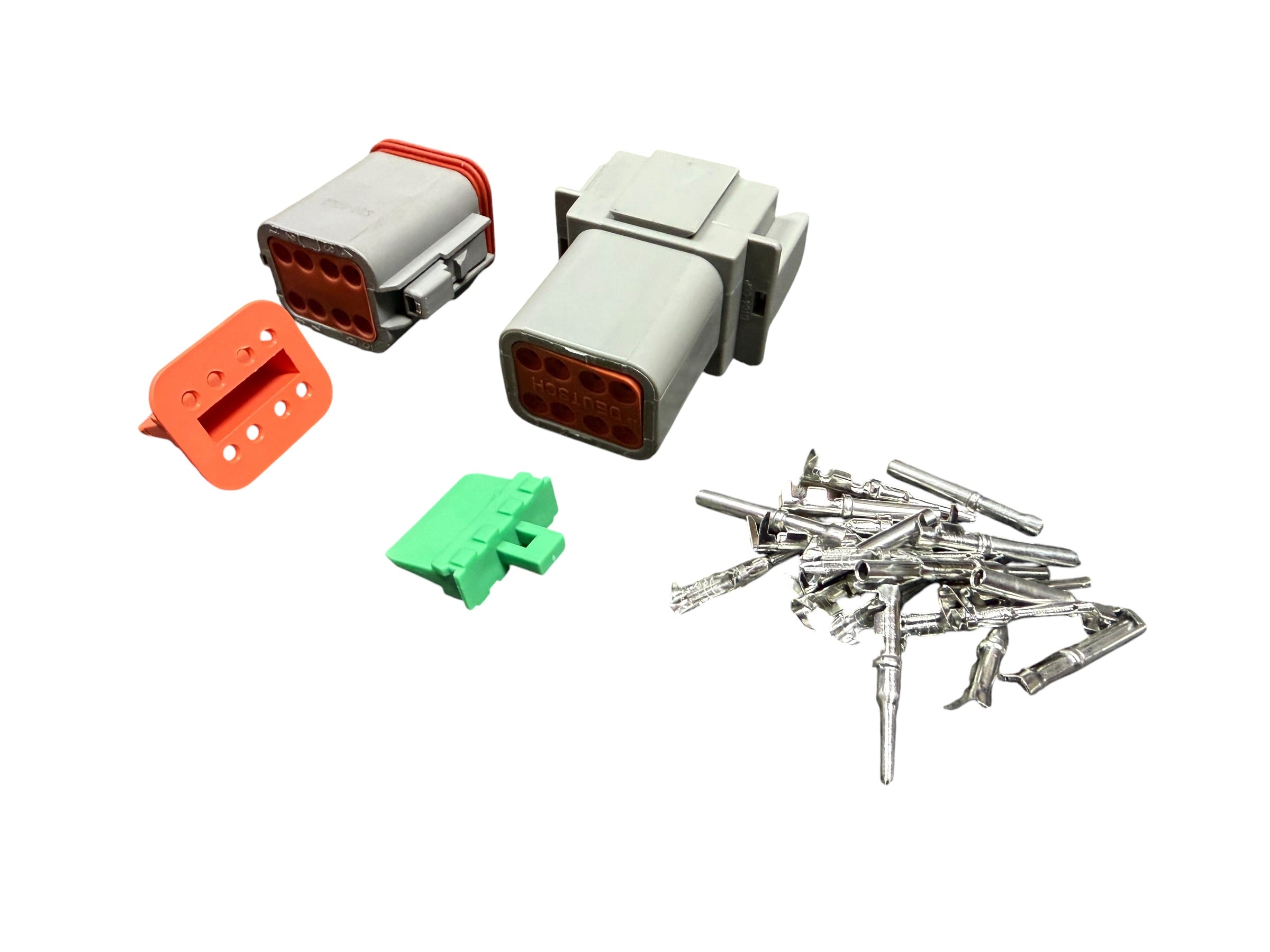

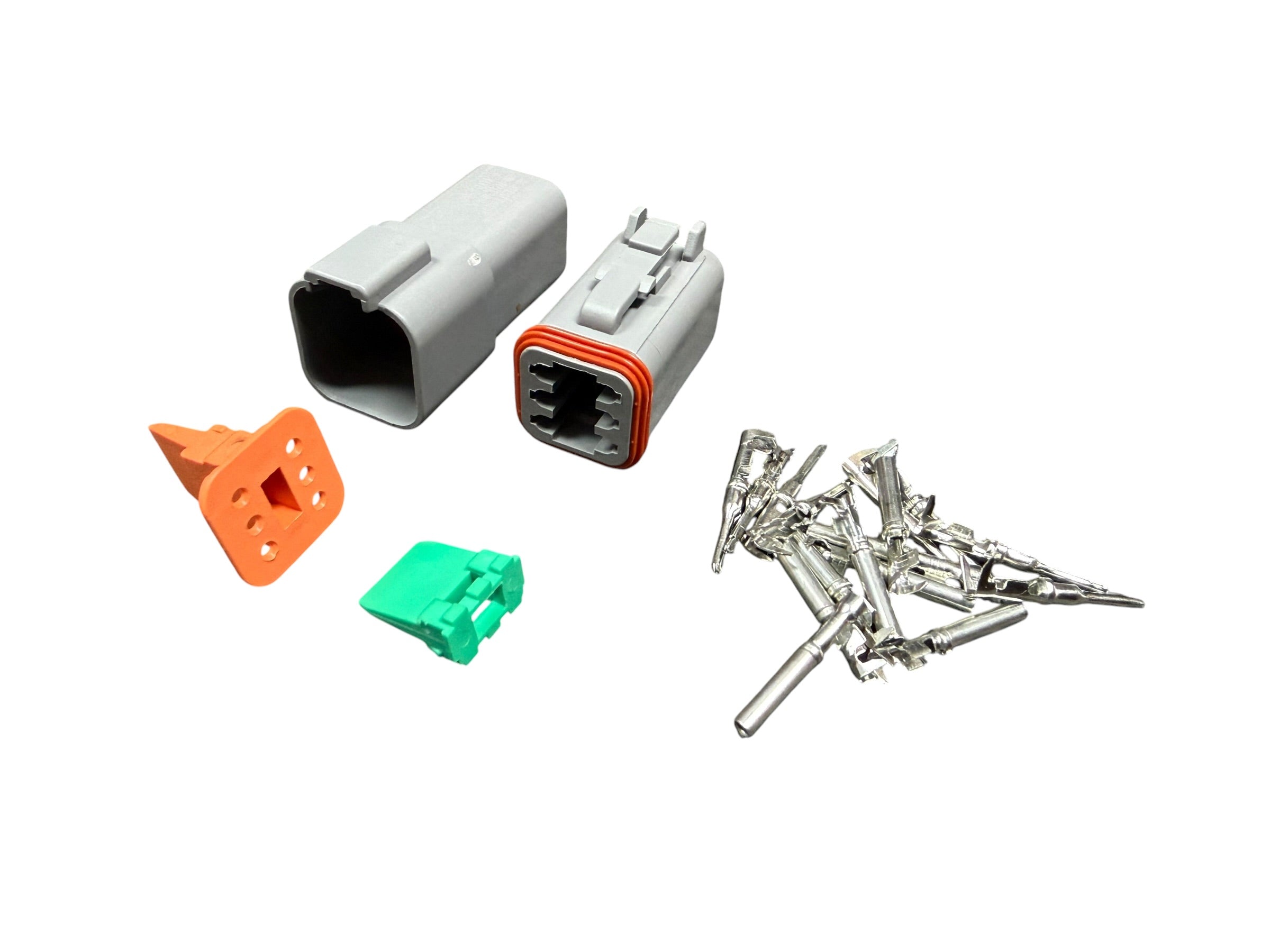

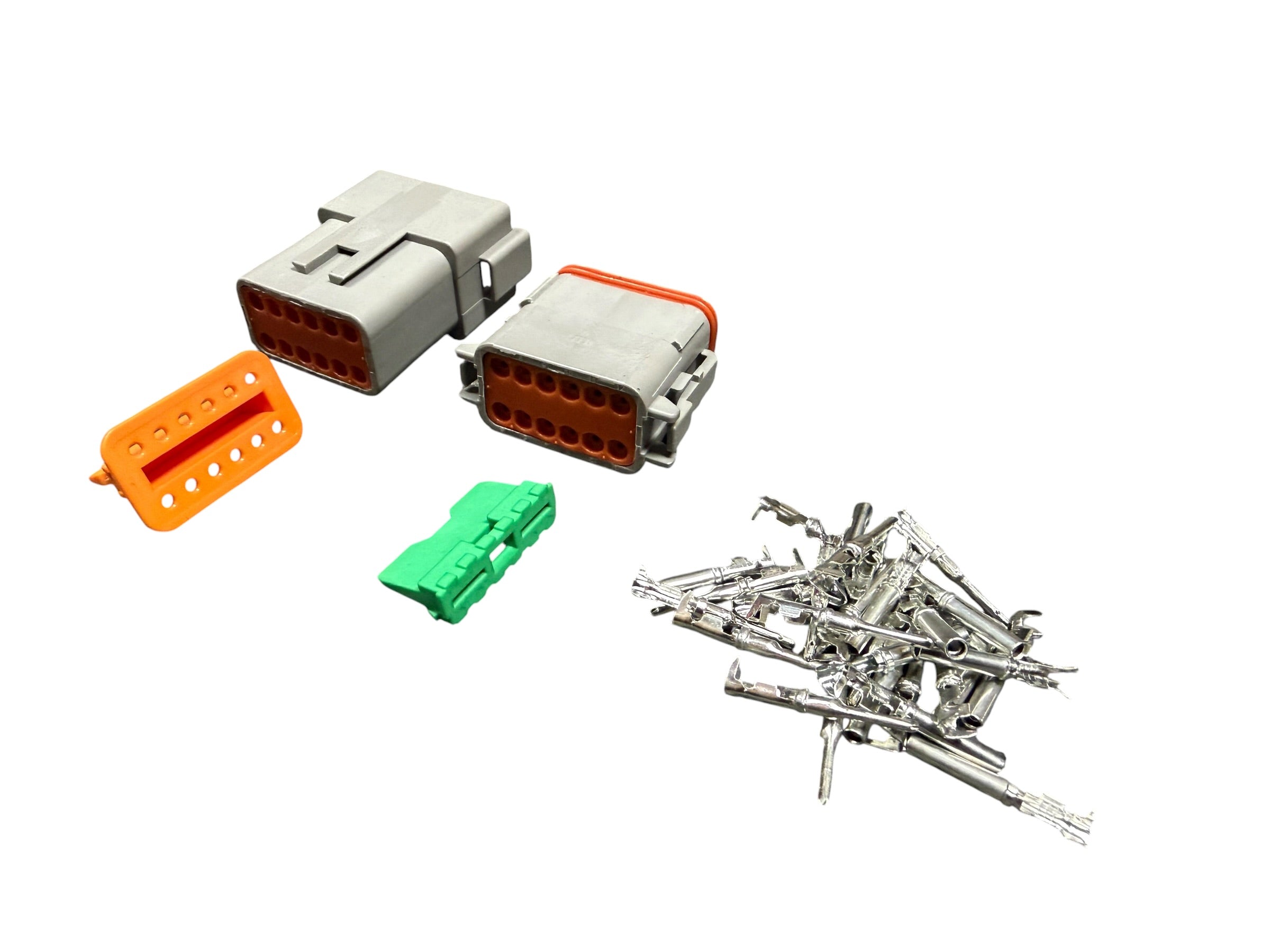

Each Kit Includes:
- 1 male connector housing
- 1 female connector housing
- Male pin terminals
- Female socket terminals
- Male and female wedgelocks
- Enough terminals to complete one mating connector pair
Applications:
Automotive wiring, motorsport harnesses, marine electrical systems, off-road vehicles, engine harnesses, chassis harnesses, lighting, sensors, pumps, fans and custom wiring projects.
Please Note:
DT and DTM connectors are different sizes and are not interchangeable. DT connectors use larger size 16 contacts, while DTM connectors use smaller size 20 contacts. Confirm the connector series, cavity count and wire size needed before ordering.
