Fuel Pressure Regulator Gauge Rail B D-Series Honda Acura FPR Civic
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***
Will only work on SOHC Civics with Skunk 2 intake manifold
or any intake manifold that has 3 bolts to attach the fuel rail to the manifold!
Application:
- For Acura/Honda Integra Civic Del Sol Si B16A B16A1 B16A2 B16A3 B18C B18C1 B18C5 B20B B20Z
- B-Series Swapped Engines
- D-Series Engines D15 D16 D17
Features:
- High Flow Fuel Rail, Fuel Pressure Regulator, and Fuel Pressure Gauge
- OE fuel pressure regulator or adjustable fuel pressure regulator mounts directly to rail with no modifications
- 1/8th NPT port is included to accommodate a nitrous set up or a fuel pressure gauge
- 1/2" fuel bore to support fuel flow for applications up to 1000 horsepower
- A custom fuel line fitting is included for the factory fuel line and the ends of each rail are tapped to accept -6 AN or 9/16" x 18 fittings for users who want to use custom fuel lines.
Details:
- Made From High Quality Black Anondized Aluminum

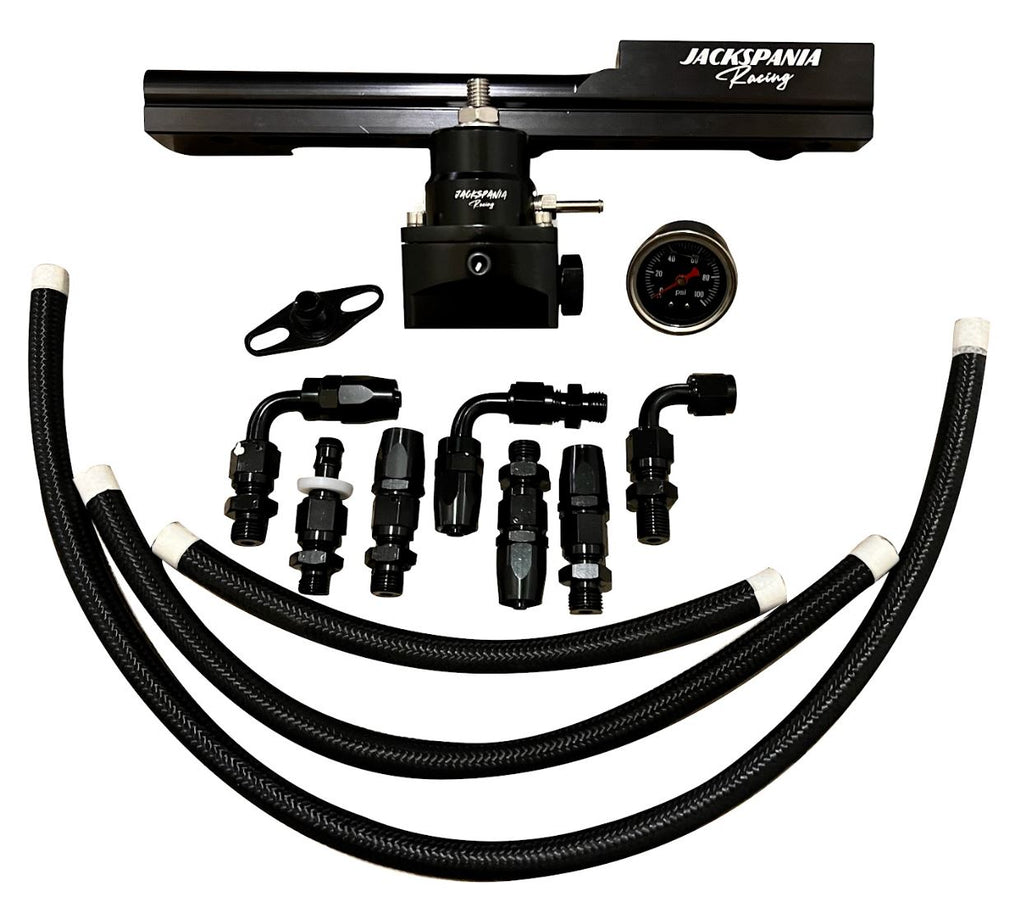

Package Includes:
- 1x High-Flow Fuel Rail Kit (100% Brand New Never Used Or Installed)
- 1 x Fuel Pressure Regulator Kit
- 1 x Fuel Pressure Gauge
- Includes ALL Hardware As Pictured
- 1 x 6an Fitting for Fuel Rail-To-Fuel Line.
