GM LS7 Intake Manifold Fabricated Aluminum 102mm EFI Fuel Injection Sheet LS USA
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***

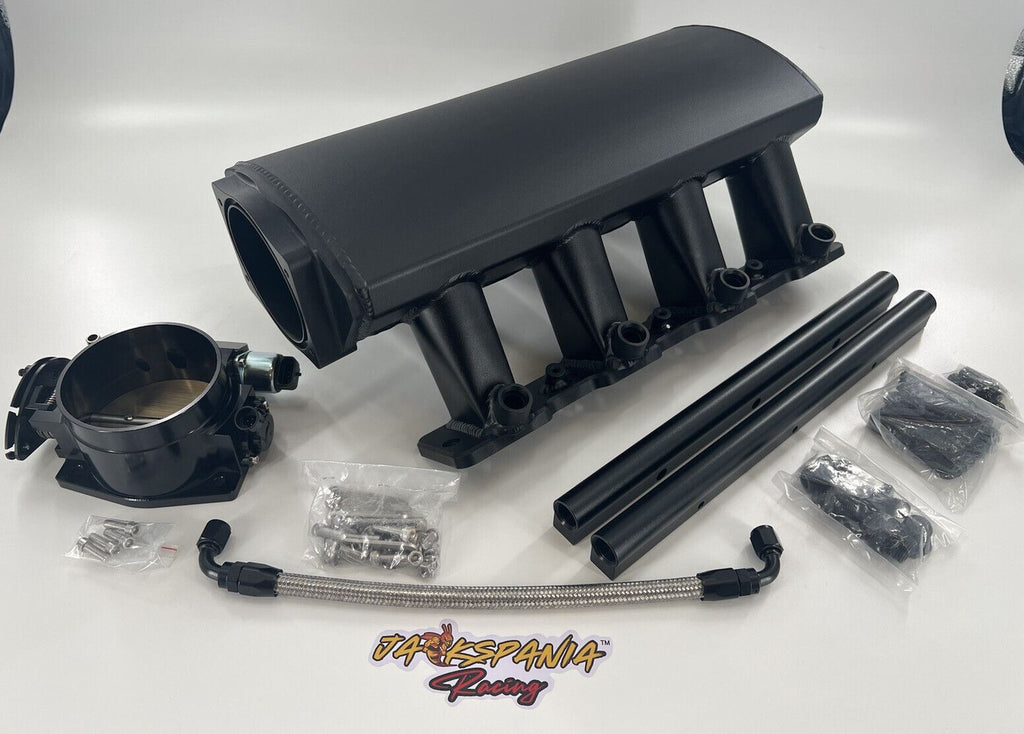

GM LS7 Fabricated Aluminum Intake Manifold
100% fabricated aluminum intake manifold. Featuring a 102mm throttle body opening for maximum air flow.
The construction and design of the runners allow air to move more smoothly at higher RPM's. Constructed from 3.5mm thick T-6061 aluminum and TIG welded to ensure consistent strength and performance.
Specs & Features:
Application: GM LS7 Engines
RPM Range: 1500-6500
Throttle Body Inlet Bore: 102mm
Material: Sheet Metal Aluminum
Material Thickness: 3.5mm
Finish: Clear Anodized
Front Intake Height: 6.750"
Rear Intake Height: 7.500"
Runner length: 1.750''x2.150''x4
Vacuum Port Size: 3 x 1/8" NPT & 1 x 1/4" NPT
Fuel Rails: Not Included
Includes Port O-Rings & Mounting Hardware
