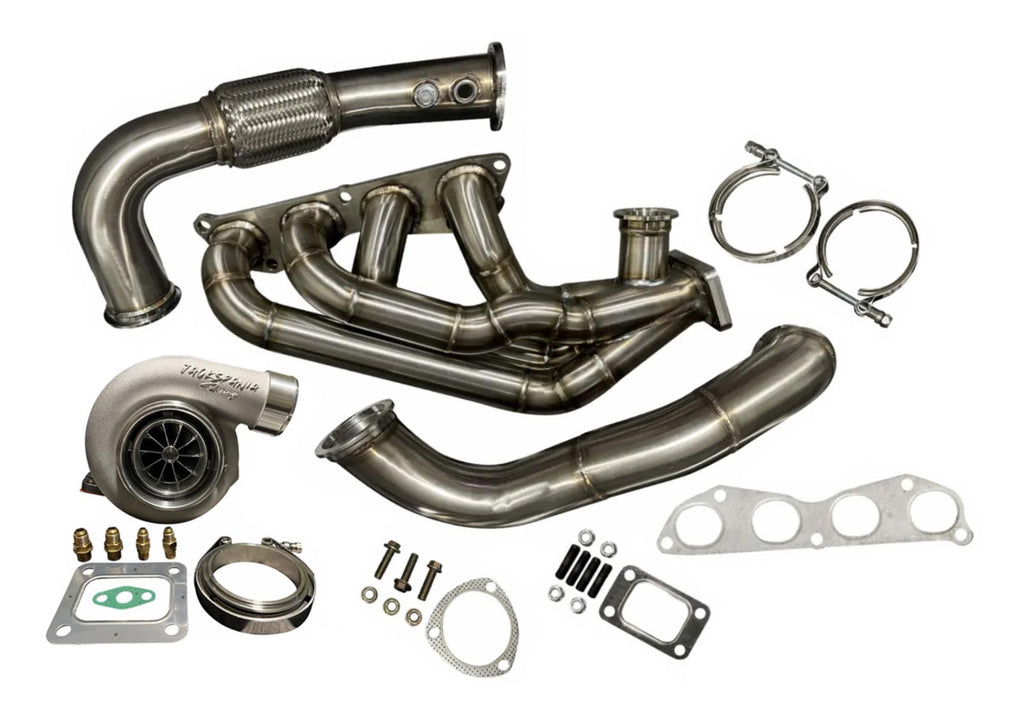

K Swap K Series K20 K24 Turbo Sidewinder Manifold GT35 6262 T3 .63 44mm EG EK DC
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***
Manifold Info:This manifold design fits every Honda K-Series chassis from K-Swap's, CRX, Civic, Integra, EP3 Civics and RSX.Key Features: Made of 304 grade stainless steel
One year limited warranty
CNC machined manifold flange
Flange is 1/2 inch thick
Thick 8 gauge / Schedule 40 pipe
One piece design
44mm wastegate flange
Flanges surfaced for perfect seal
Fully portedLow angle merge collector
Professionally TIG welded and assembled
Coolant lines may need to be modified or rerouted
Turbo Info: Compressor wheel: 65.7/82.6/85.3mm Compressor Housing: 0.72 A/R Anti-Surge, 4" Inlet, 2.5" Outlet Turbine wheel: 68mm/62.3mmTurbine housing: T3 Inlet, V-Band 3" Outlet, A/R 0.63 Oil inlet:7/16-24UNF. Journal bearing turbo
Info for Turbo to Catback Piping
Vehicle Fitment:
- Honda Civic 1988 - 2000 EF EG EK
- Acura Integra 1990 - 2001 DA DC2
- For sidewinder turbo manifolds
- 3-inch stainless steel piping
- Flex pipe
- V-band flanges and clamp
- Fits K-Series K20 K24 sidewinder turbo manifold
