K Swap K Series K20 K24 Turbo Sidewinder Manifold Intercooler GT35 T3 .82 EG EK

  • $1,499.95
    Unit price per
Shipping calculated at checkout.

Available 5 In Stock

secure checkout

*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***

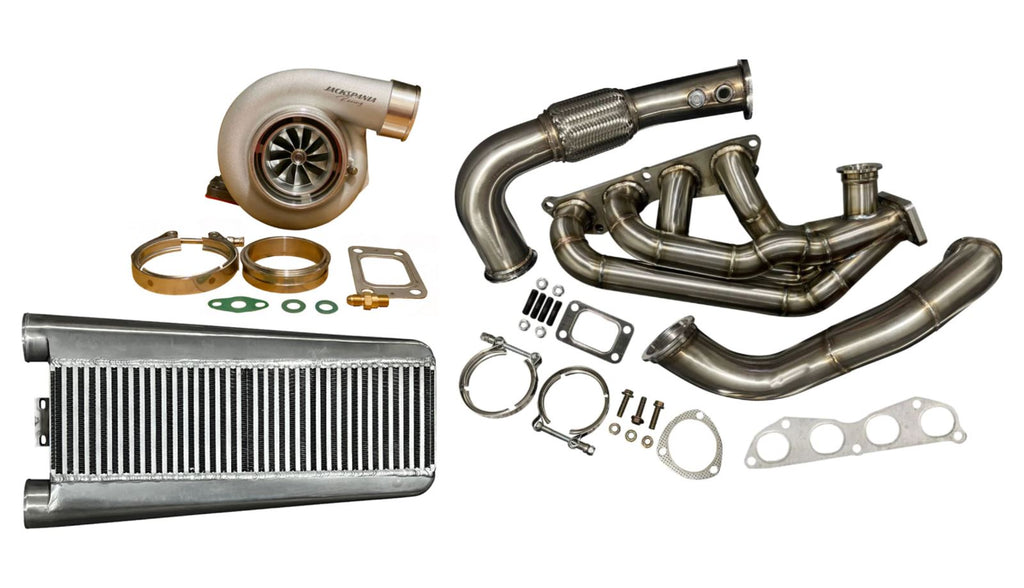

K Swap K Series K20 K24 Turbo Kit Sidewinder Manifold Intercooler GT35 EG EK T3

Intercooler Info:


Key Features:

  • Core Size: 24" x 7" x 3.5"
  • Overall Size: 27" x 12.5" x 3.5"
  • Air to air intercooler core
  • High density, high quality core
  • Bar and plate construction
  • 3" inlet & 3" outlets
  • Rated for 600HP+
  • Manifold Info:
  • This manifold design fits every Honda K-Series chassis from K-Swap's, CRX, Civic, Integra, EP3 Civics and RSX.

Key Features:
  • Brand New In Box
  • For K-Series K20 K24 Motor
  • Made of 304 grade stainless steel
  • One year limited warranty
  • CNC machined manifold flange
  • Flange is 1/2 inch thick
  • Thick 8 gauge / Schedule 40 pipe
  • One piece design44mm wastegate flange
  • Flanges surfaced for perfect seal
  • Fully ported
  • Low angle merge collector
  • Professionally TIG welded and assembled
  • Coolant lines may need to be modified or rerouted
  • Comes Exactly As Pictured

Turbo Info:
  • Compressor wheel: 65.7/82.6/85.3mm
  • Compressor Housing: 0.72 A/R Anti-Surge, 4" Inlet, 2.5" Outlet
  • Turbine wheel: 68mm/62.3mm
  • Turbine housing: T3 Inlet, V-Band 3" Outlet, A/R 0.82
  • Oil inlet:7/16-24UNF

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
D.G.
Turbo

Is this a ball bearing or journal bearing turbo ?

J
John Olivares
Can’t go wrong with this kit

Clean welds, can’t beat quality/price
