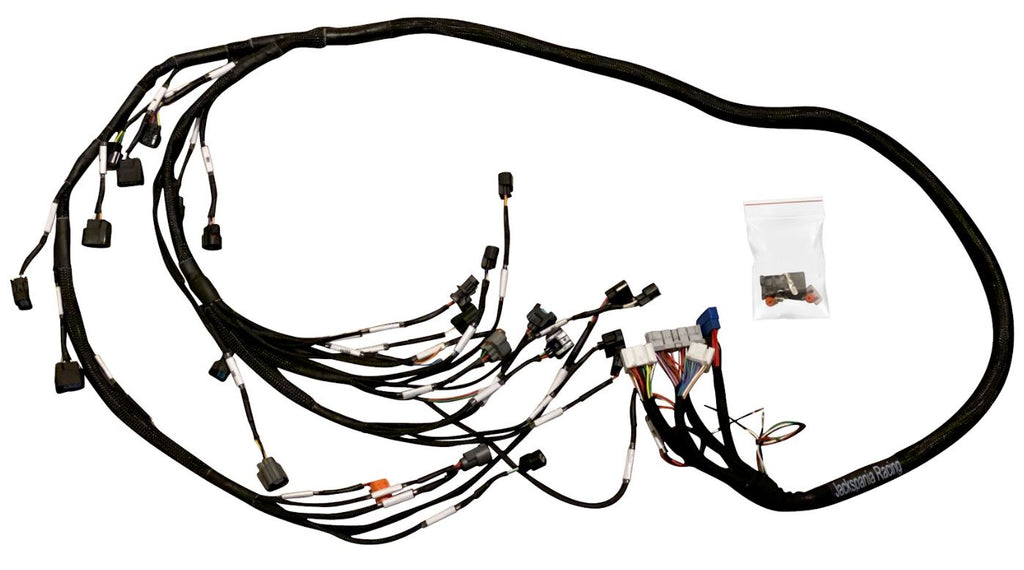

K20 K24 K Series Tucked Wiring Harness For RHD LHD RWD K-Swap Integra CRX EK EG

  • $399.95
    Unit price per
Shipping calculated at checkout.

Available 10 In Stock

secure checkout

*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***

K20 K24 K-Series Tucked Engine Harness For Honda Acura K-Swap RSX Civic Si EP3


Applications:

  • ALL K-Swapped Cars
  • 02-04 RSX Type S
  • 02-04 RSX Base
  • 01-05 Civic EP3 (Type S or K24 Swap)
  • Fits RHD/LHD/RWD Applications

Description:

Version 2 of our K-Series engine harness was created to allow a more universal chassis application, and routing preference. This style can be routed more like the OEM K-Series engine harness through the center or passenger side of the firewall compared to our Version 1 units. The routing method is perfect for RHD customers however NOT exclusive to RHD chassis and does work on LHD chassis as well. The new routing allows to get around aggressive headers, and turbo manifolds.

The new harness design allows for a better tuck split and cleaner look than our Version 1 variant. We have made these to last with only the highest quality TXL automotive wiring. All harnesses are tested pin to pin to assure proper connections to its necessary sensors.

We build these with brand new OEM style connectors to assure proper fitment on all required engine sensors.

Connections Included on our Harnesses: (For Reference ONLY)
VTEC solenoid
VTC
VTP
Oil pressure sending unit
Crank Sensor (CKP)(02-04 K20 style)
Coils 1-4
Cam (CPS) Exhaust Side
Top Dead Center sensor (TDC) Intake Side
Engine Coolant Temp (ECT) (02-04 K20 style)
Knock Sensor (KS)(02-04 K20 style)
Intake Air Temperature (IAT)
Alternator (02-04 K20 style)
Manifold Air Pressure (MAP)
Throttle Position Sensor (TPS)
Idle control motor
Electronic speed sensor (VSS)
Injectors 1-4
h20 sending unit (for gauge cluster)
Reverse Lights
Reverse Lockout solenoid
Starter signal
Computer plugs A and B
Power distribution cap
Ground
2x Heavy Gauge Fan Wires with OBD1 Style Fan connector (Must wire a relay on the ECU side to utilize these for a fan connection)
