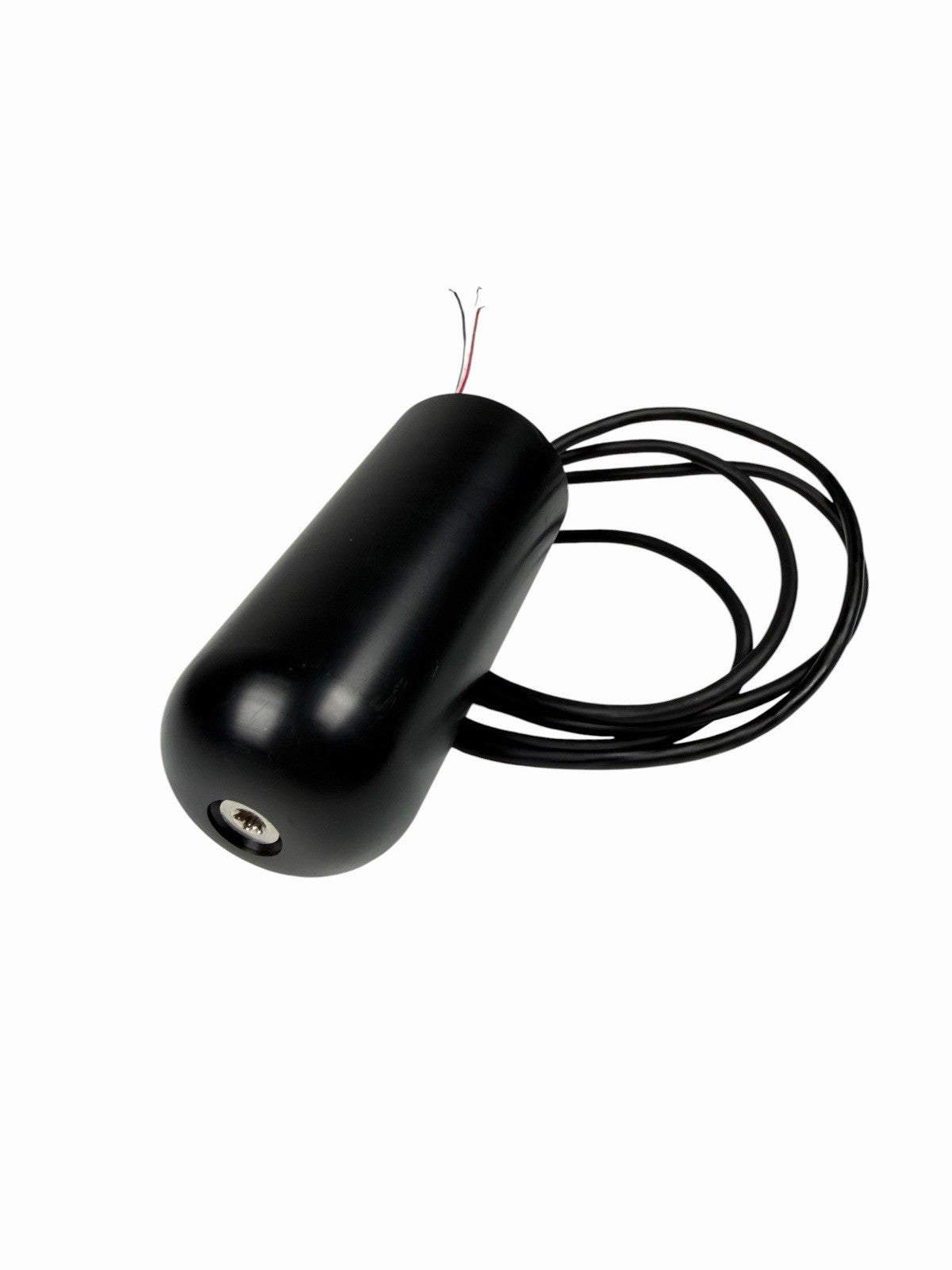

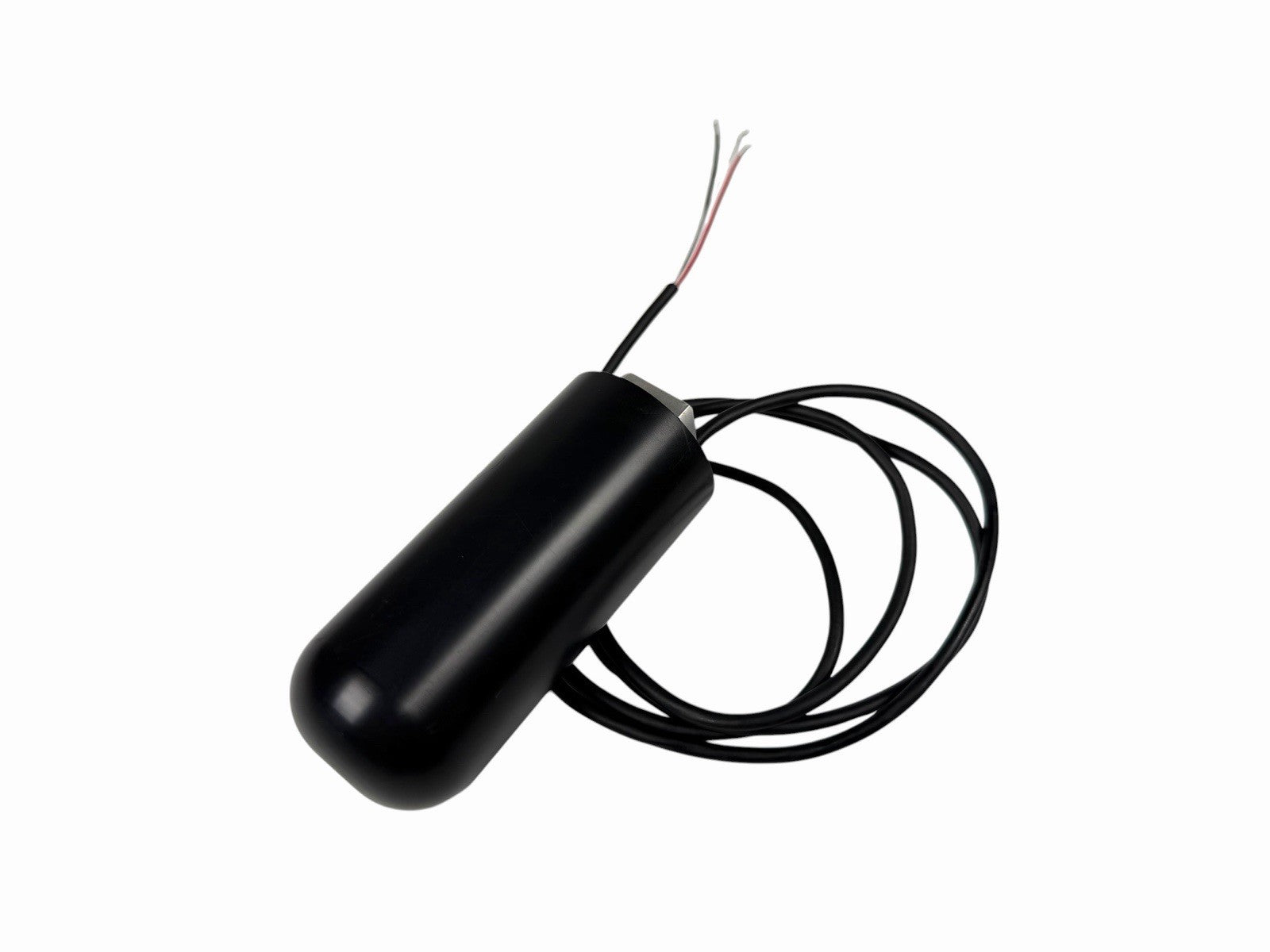

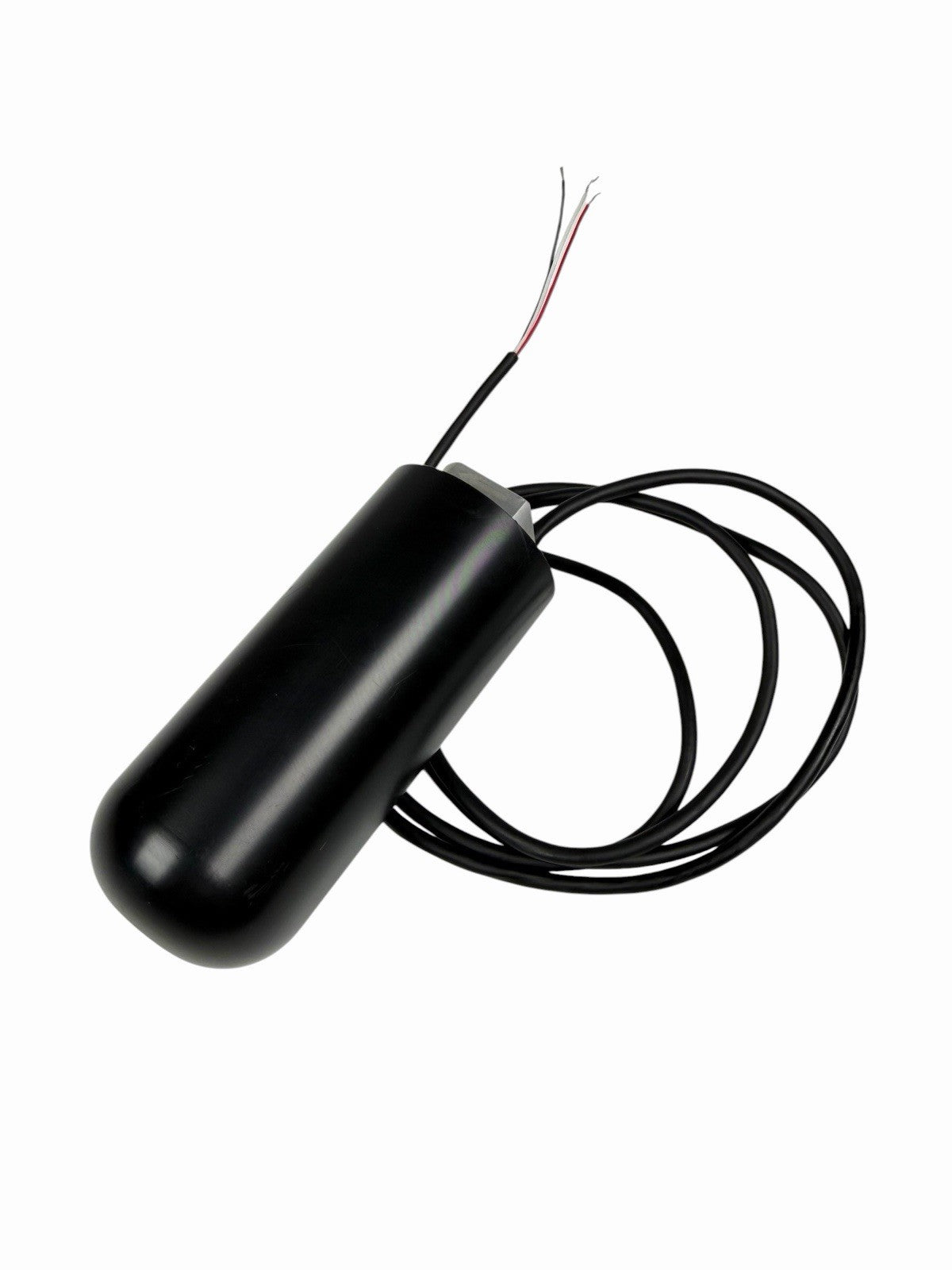

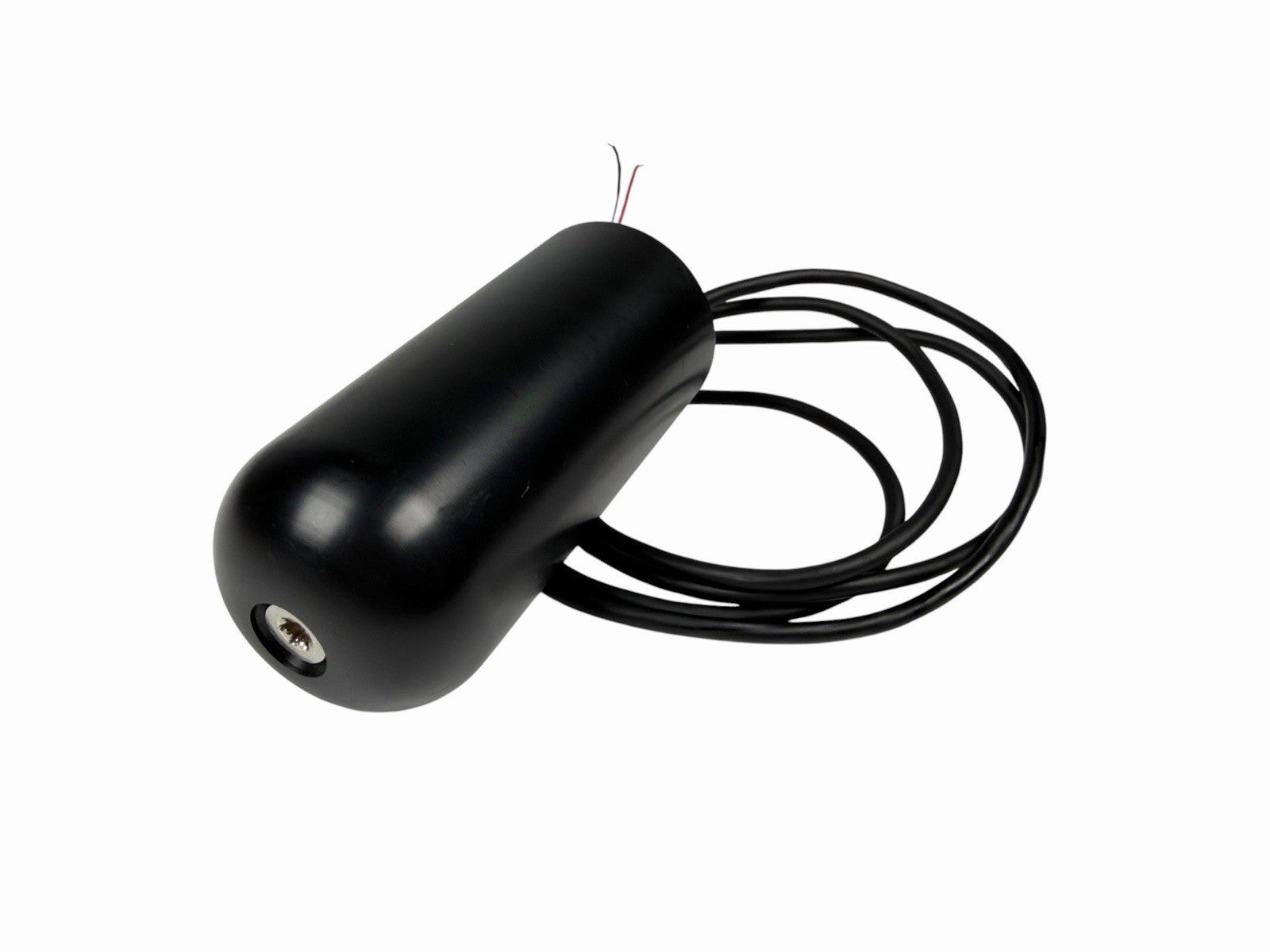

Strain Gauge Shift Knob Clutchless Upshift 0-5V Signal For Honda Acura M10 X 1.5
*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***
Strain Knobs utilize advanced, proven technology trusted for years in competitive drag racing applications. Designed for performance and precision, this system enables smooth, full-throttle clutchless upshifts with minimal effort.

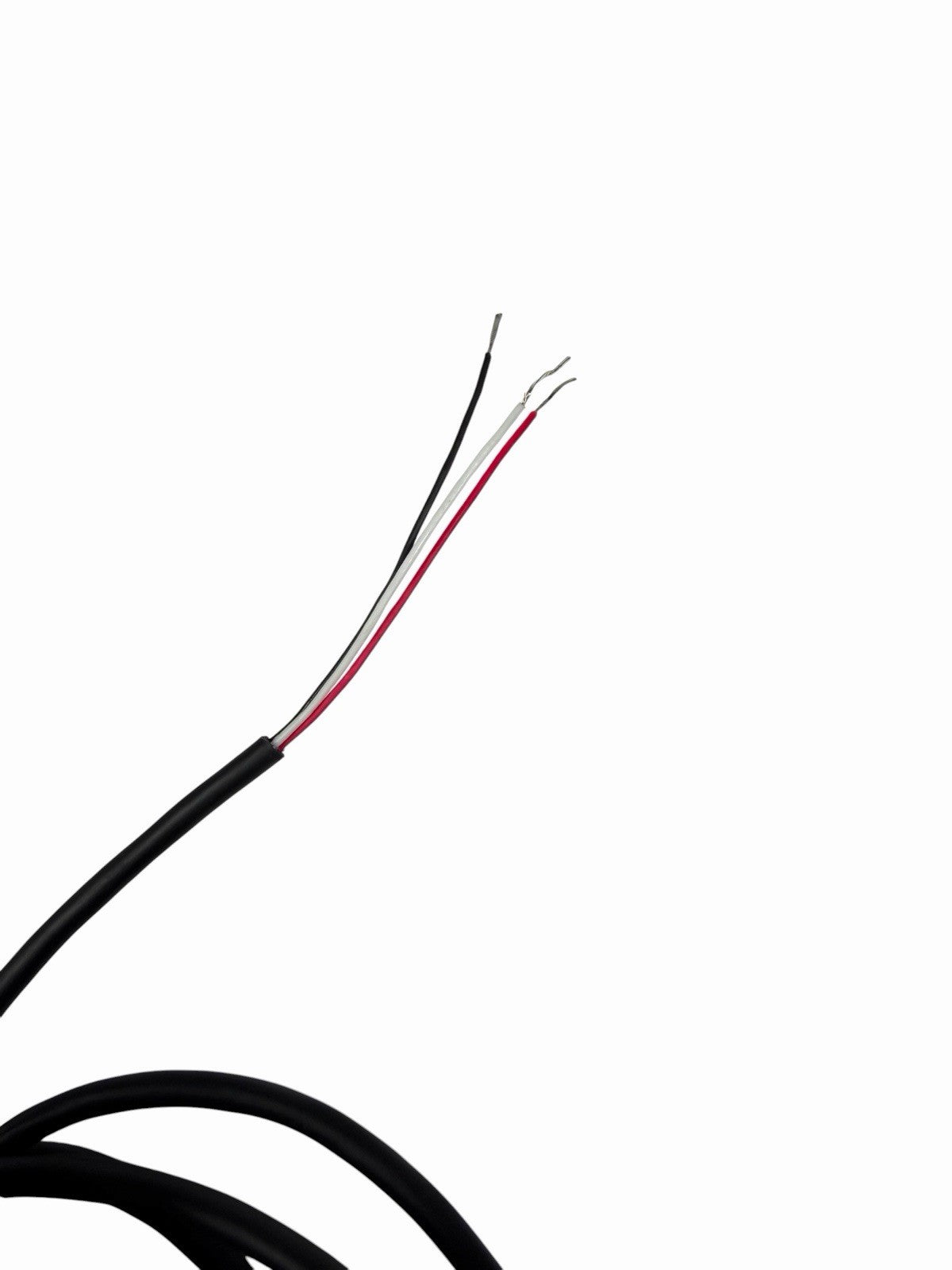

Installation is straightforward simply replace your existing shift knob, wire the power, ground, and signal leads to your ECU, and configure your EMS to trigger an ignition cut. The result is fast, seamless gear changes under load.
Compatible with both rod and cable-actuated shifters, making it ideal for popular platforms such as Honda and Acura B-Series and K-Series setups.
We recommend the 2.5V Reference Amplifier Module, as most standalone EMS systems accept a 0–5V input range.
Key Features:
- 2.5V resting signal (optimized for MoTeC, AEM, Haltech, FuelTech, and similar systems)
- ±0.5% signal accuracy
- Supports 5V or 8–16V power supply
Options:

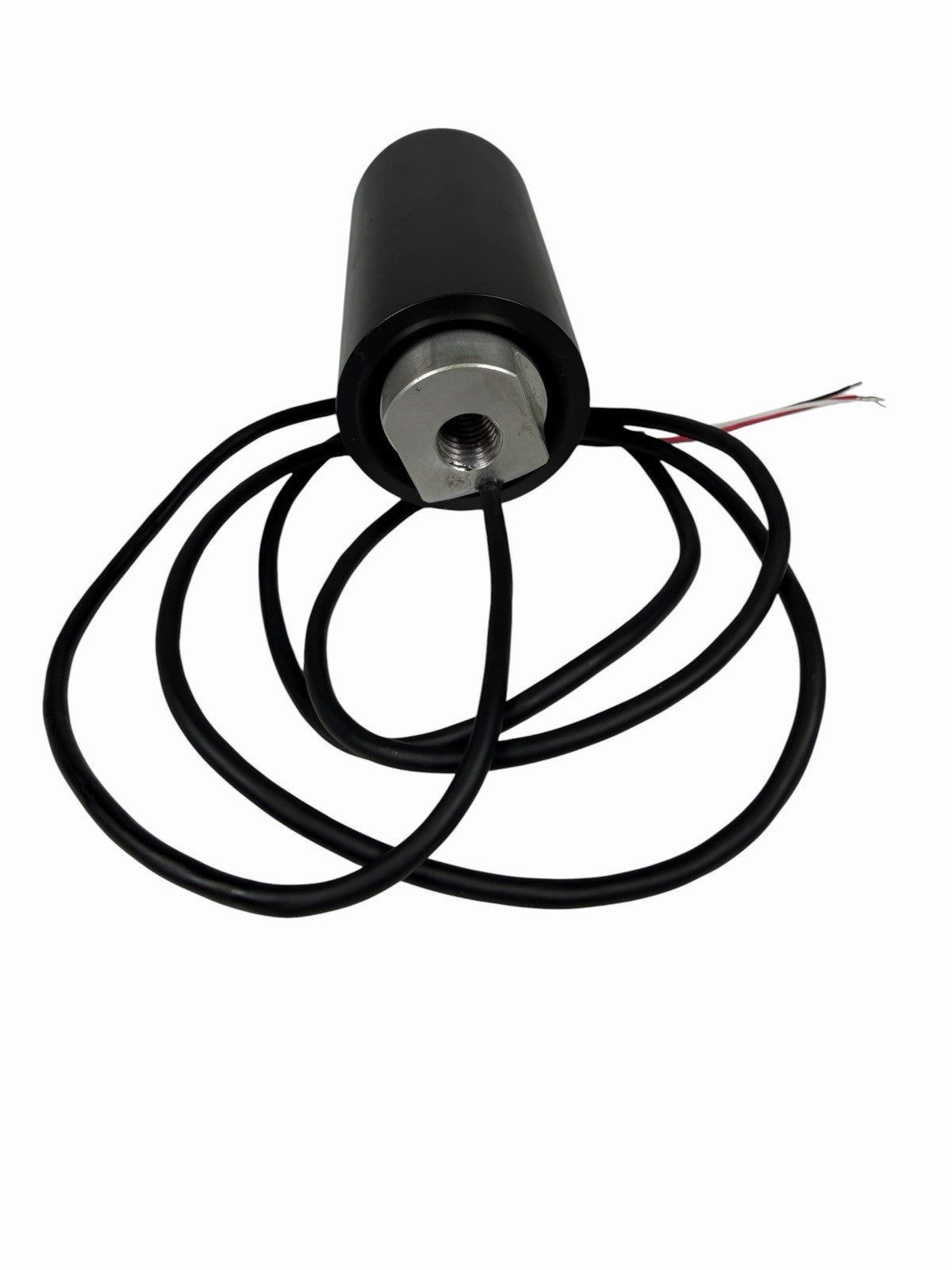

- Thread Pitch: M10x1.50 (OEM Honda fitment)
Note: When using a 5V output, resting voltage may read below 2V.
