Blow Off Diverter Valve Adapter Spacer Go Fast DV+ For VW Audi 2.0T Golf Jetta

  • $34.95
    Unit price per
Shipping calculated at checkout.

Available 20 In Stock

secure checkout

*** IMPORTANT NOTE: Order processing can take up to 1-2 business days. Shipping timeframes start after the order processing has been completed. ***

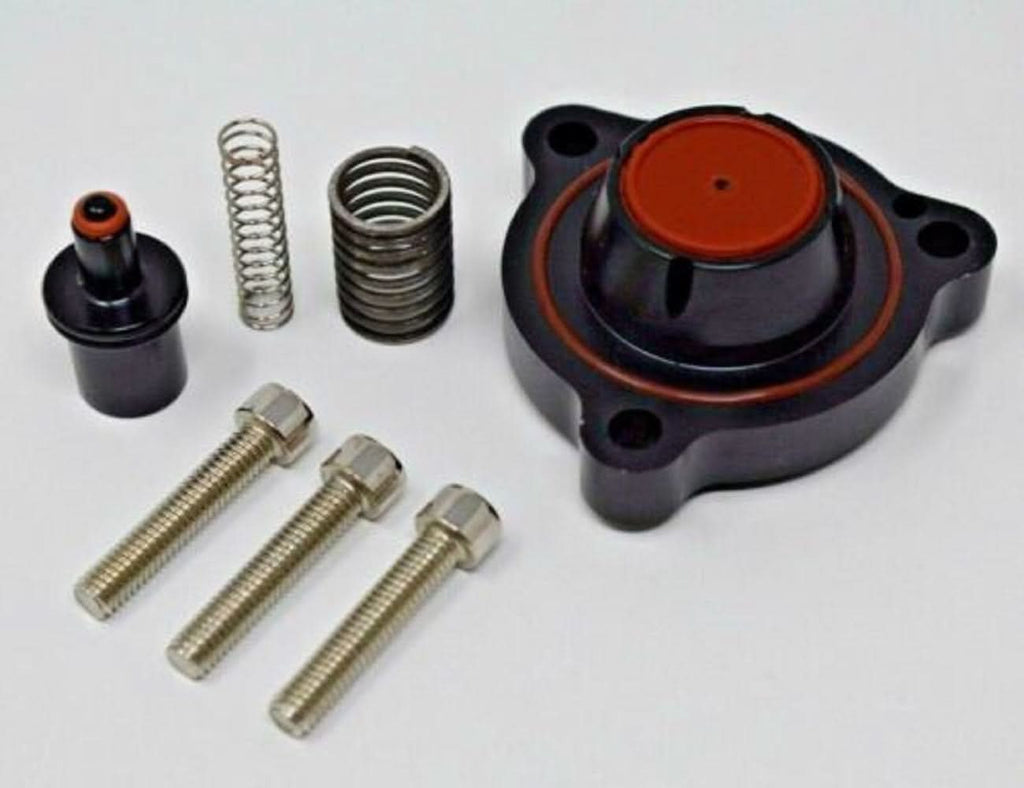

    Blow Off Diverter Valve Adapter Spacer Go Fast T9351 For VW Audi 2.0T GTI TT GLI


    Description:
    • Retains the factory solenoid coil for seamless integration
    • Replaces plastic valve parts with metal for reliability and strength on chipped engines
    • Direct-fit replacement with TMS benefits
    • Exclusive “pilot-actuated” valve mechanism for rapid response at high boost

    dv+ Blow-off Valve or BOV/ diverter valve



    A direct-fit solution for the weak factory diverter valve used on many European vehicles.

    The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodized billet aluminum housing fitted with a brass piston machined to exacting tolerances.




    The end result is sharper throttle response and lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page.

    Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive, and takes much longer to install.

    Our DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.






    The DV+ Story: Better Performance – More Reliable

    Many late-model European cars use ECU-controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.

    However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.






    Common OE Problem #1
    The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of the chip tuning.






    Common OE Problem #2
    The plastic piston-type leaks far more than most people realize (by design, not from wear), and doesn’t always close after a high-boost gear shift.






    Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring is strong enough to open and close the valve reliably at high boost.

    With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity – more of a compromise than a solution.

    GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag.

    The DV+ addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructible metal components ensures strength and reliability no matter how much boost you run.

    That’s not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn’t matter how much boost you push through it, the DV+ will open and close reliably without ever exceeding the solenoid’s capability.

    This feature also improves the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response.






    Unnecessary Replacement Kits Are A Compromise, Not A Solution






    Fitment:



    AUDI A6 2.0TFSI (2011-On)VW 2.0 TSI 147 KWAUDI 8P (2003-2013) 2.0TFSIVW Tiguan 2.0 TSI 11-OnAUDI A6 2.0TFSI (2006-2011)VW EOS 2.0 TFSI 2006-2015VW Passat B6 2.0 TSI 05-11AUDI TT 8J 2.0 TFSI 06-14VW Tiguan 2.0 TFSI 07/-OnAUDI B8 (2007-2015) 1.8/2.0 TFSIVW Scirocco R Mk3 2.0t FSI (EA113) 06-13AUDI B7 (2005-2008) 2.0TFSISKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013AUDI 8P (2003-2013) 2.0TFSIAUDI B8 (2007-2015) 1.8/2.0 TFSIAUDI S3 8P (2006-2013) 2.0TFSIVW Tiguan 2.0 TFSI 07/-OnAUDI TTS 8J 2.0 TFSI 06-14AUDI B8 (2007-2015) 1.8/2.0 TFSIAUDI A1 2010-2014 1.4TFSI (90kW/122hp)AUDI B8 (2007-2015) 1.8/2.0 TFSIAUDI TTRS 8J 2.5 TFSI 09-14VW Golf Mk6 1.4 TSI (Turbo Only, NOT Twincharged) 08-13AUDI TT 8J 2.0 TFSI 06-14AUDI 8V (2013-On) 1.8/2.0TFSISKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-OnAUDI B8 (2007-2015) 1.8/2.0 TFSISKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-OnAUDI 8V (2013-On) 1.8/2.0TFSIAUDI RS3 8V (2018-On)VW Passat B8 1.8/2.0TSI 2015-OnVW Golf GTI Mk7 2.0TSI 14-OnAUDI 8V (2013-On) 1.8/2.0TFSIVW Scirocco Mk3 2.0t FSISKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013VW Golf GTI Mk7 2.0TSI 14-OnVW Golf GTI Mk7 2.0TSI 14-OnAUDI S1 8X (2014-On) 2.0TFSIAUDI TT 8S 2.0TFSI 2014-2018SKODA Superb 2.0TSI (162kW) 2015-OnAUDI B9 (2015-On) 2.0TFSIVW Scirocco Mk3 2.0t FSIVW Scirocco Mk3 1.4 TSI (Turbo Only)VW 2.0 TSI / TFSIVW Golf GTI Mk5 2.0TFSI 04-09AUDI 8P (2003-2013) 1.8TFSIAUDI Q5 2.0TFSI (2008-On)SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013AUDI RS3 8V (2015-2018)AUDI B9 (2015-On) 2.0TFSISEAT Altea 04-OnVW 5GI 1.8T 01/15-OnVW Golf R Mk6 2.0TSI 08-13VW Tiguan 2.0 TSI 11-OnVW Golf GTI Mk5 2.0TFSI 04-09AUDI 8P (2003-2013) 2.0TFSIVW Golf GTI Mk6 2.0TSI 08-13VW Polo GTI (1.8TSI 2015-On)AUDI A1 1.8TFSI 2015-OnVW Golf Alltrack 1.8TSI 2014-OnSEAT Altea 04-OnSEAT Altea 04-OnAUDI RS3 8P (2011-2012)
